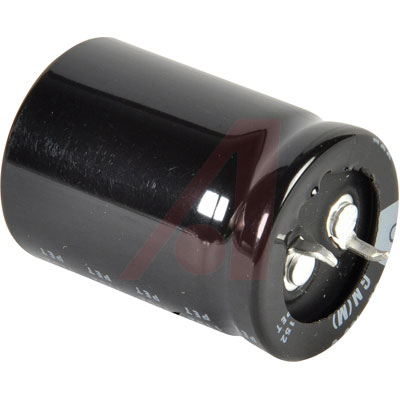

LGN2H221MELB45

NICHICON  LGN2H221MELB45  铝电解电容, 220uF, 500V, 摁入式

**Features:

**

* Withstanding 3000 Hours Application of Rated Ripple Current at 105°C**

**

* One Rank Smaller Case Sized Than GU Series**

Specifications:

**

* Temperature Range: –25°C to +105°C 350 to 500 VDC

得捷:
CAP ALUM 220UF 20% 500V SNAP

立创商城:
220uF ±20% 500V

e络盟:
铝电解电容, 220uF, 500V, 摁入式

艾睿:
If you need to filter lower signal frequencies, then this electrolytic LGN2H221MELB45 aluminum capacitor, developed by Nichicon, is the tool you need. It can withstand a voltage of 500 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 45 mm tall with a diameter of 30 mm. It has a tolerance of 20%. Its capacitance value is 220uF. Its leakage current is 990@5Min μA. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. The LGN2H221MELB45 aluminum electrolytic capacitor has a snap-in termination style.

Allied Electronics:
Capacitor; Al Electrolytic; Cap 220 uF; Tol 20%; Vol-Rtg 500 VDC; Snap-In; 30x45mm

安富利:
Cap Aluminum 220uF 500V 20% 30 X 45mm Snap-In Aluminum Cylindrical Can 1020mA 3000 hr 105°C Bulk

Verical:
Cap Aluminum Lytic 220uF 500V 20% 30 X 45mm Snap-In 10mm 1020mA 3000h 105C Bulk

Newark:
# NICHICON  LGN2H221MELB45  Electrolytic Capacitor, Snap-in, 220 µF, 500 V, GN Series, ± 20%, Quick Connect, Snap-In, 30 mm
