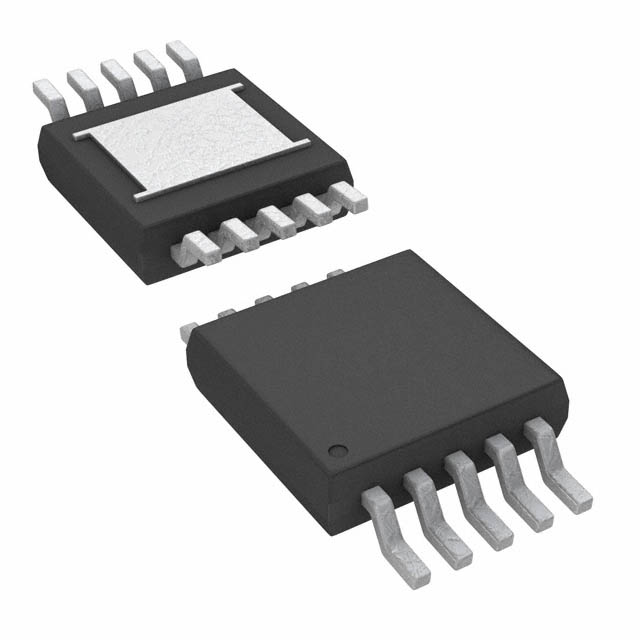

LINEAR TECHNOLOGY LTC3255IMSE#PBF 芯片, 降压电荷泵, 500KHZ, MSOP10
Through the use of capacitors as an energy storage element, the charge pump voltage doubler from can provide different levels of voltage to different components within your circuit. With an output that has a voltage of 2.4 to 12.5 V, this is power management at its best. Its output produces a current of 50Max mA. This device has a minimum operating supply voltage of 4 V and a maximum of 48 V. This inverting charge pump has an operating temperature range of -40 °C to 125 °C.
输出接口数 1
输出电压 2.4V ~ 12.5V
输出电流 50 mA
针脚数 10
开关频率 500 kHz
输入电压Max 48 V
输入电压Min 4 V
输出电压Max 12.5 V
输出电压Min 2.4 V
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 4V ~ 48V
安装方式 Surface Mount
引脚数 10
封装 MSOP-10
封装 MSOP-10
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC3255IMSE#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3255IMSE#TRPBF 凌力尔特 | 完全替代 | LTC3255IMSE#PBF和LTC3255IMSE#TRPBF的区别 |
LTC3255HMSE#PBF 凌力尔特 | 类似代替 | LTC3255IMSE#PBF和LTC3255HMSE#PBF的区别 |
