LT6654AHS6-4.096#PBF

LT6654AHS6-4.096#PBF图片1
LT6654AHS6-4.096#PBF图片2
LT6654AHS6-4.096#PBF图片3
LT6654AHS6-4.096#PBF概述

V-Ref Precision 4.096V 10mA Automotive 6Pin TSOT-23

Even in the event of large power supply variations, this voltage reference power management device from can produce and maintain a precise DC voltage. With an output that has a voltage of 4.096 V, this is power management at its best. It has an initial accuracy of 0.05%. Supply your circuit with sufficient power by implementing this, which does not exceed 38 V. Your circuit has the capability to produce a constant current at its output by using a load regulation of 20ppm/mA and line regulation of 5ppm/V. This voltage reference circuit supports series topology. It runs with a maximum temperature coefficient of 10ppm/°C. This voltage reference circuit has a minimum operating temperature of -40 °C and a maximum of 125 °C.

LT6654AHS6-4.096#PBF中文资料参数规格
技术参数

输出电压 4.096 V

输入电压Max 38 V

输出电流Max 10 ma

工作温度Max 125 ℃

工作温度Min -40 ℃

封装参数

引脚数 6

封装 TSOT-23

外形尺寸

封装 TSOT-23

物理参数

温度系数 ±3 ppm/℃

其他

产品生命周期 Unknown

包装方式 Each

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

数据手册

LT6654AHS6-4.096#PBF引脚图与封装图

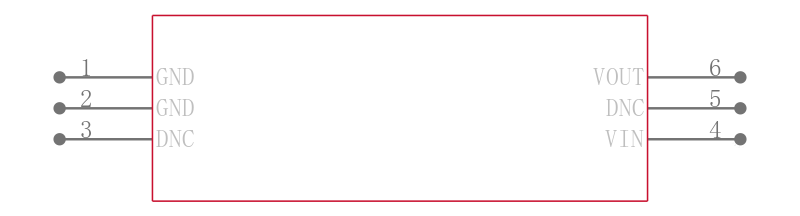

LT6654AHS6-4.096#PBF引脚图

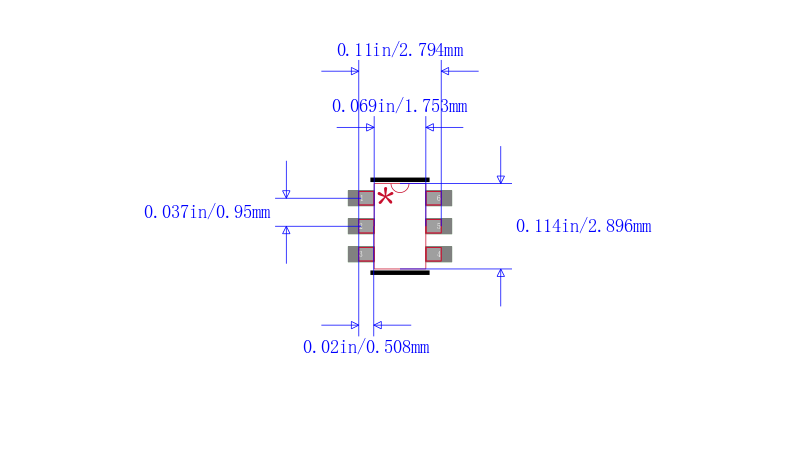

LT6654AHS6-4.096#PBF封装图

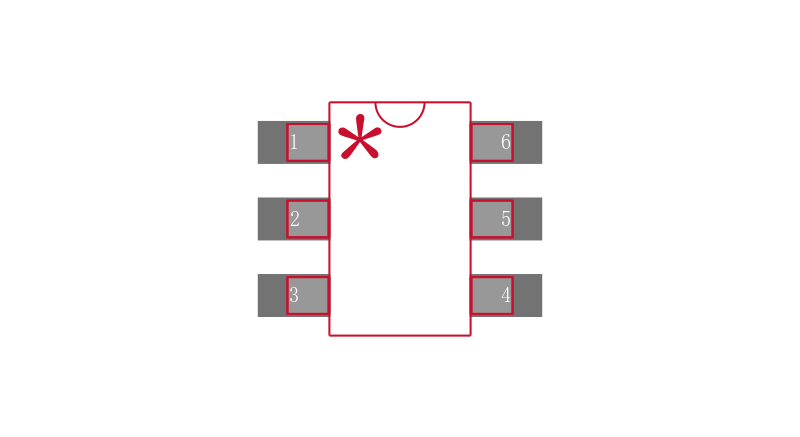

LT6654AHS6-4.096#PBF封装焊盘图
在线购买LT6654AHS6-4.096#PBF
型号: LT6654AHS6-4.096#PBF
制造商: Linear Technology 凌力尔特
描述:V-Ref Precision 4.096V 10mA Automotive 6Pin TSOT-23
