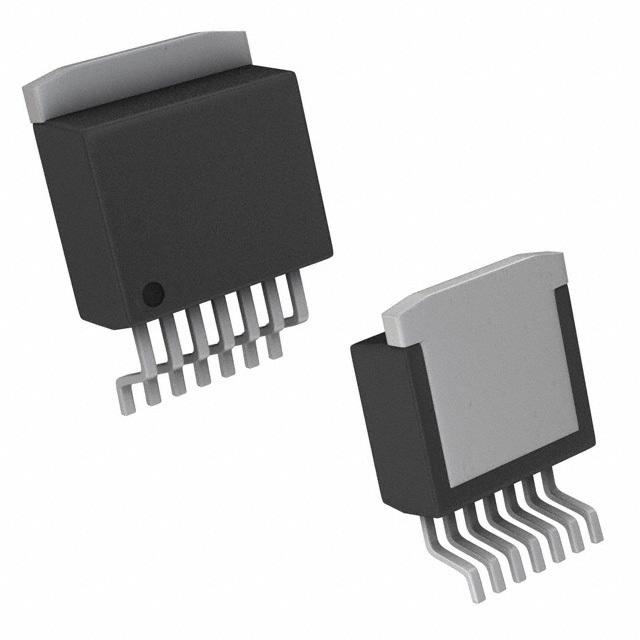

LM2599 SIMPLE SWITCHER电源转换器150千赫3A降压型稳压器 LM2599 SIMPLE SWITCHER Power Converter 150 kHz 3A Step-Down Voltage Regulator
Adjust the voltage level of your devices with this step down DC to DC converter from Texas Instruments. This converter"s single output can produce a current up to 3 A. Use this part at voltages between 4.5 V and 40 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. This converter is 73typ % efficient. This part offers a switching frequency of 173 kHz in order to work properly. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
输出接口数 1
输出电压 3.3 V
输出电流 3 A
静态电流 5.00 mA
调节输出数 1
开关频率 150 kHz
拓扑结构 Buck
输入电压Max 40 V
输入电压Min 4.5 V
输出电压Min 3.3 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5 V
输入电压 4.5V ~ 40V
安装方式 Surface Mount
引脚数 8
封装 TO-263-7
封装 TO-263-7
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LM2599SX-3.3/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM2599SX-3.3 德州仪器 | 完全替代 | LM2599SX-3.3/NOPB和LM2599SX-3.3的区别 |
LM2599S-3.3 德州仪器 | 完全替代 | LM2599SX-3.3/NOPB和LM2599S-3.3的区别 |
LM2599S-3.3/NOPB 德州仪器 | 类似代替 | LM2599SX-3.3/NOPB和LM2599S-3.3/NOPB的区别 |
