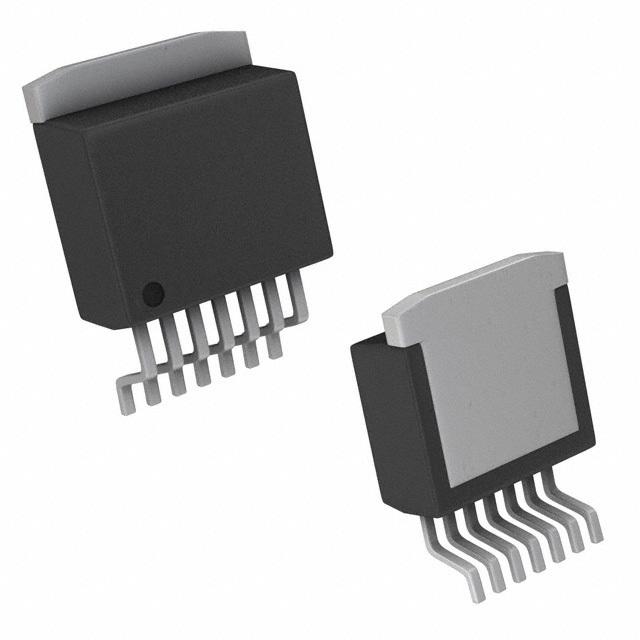

具有多种特性的 SIMPLE SWITCHER 电源转换器 150 KHz 2A 降压电压稳压器 7-DDPAK/TO-263 -40 to 125
Adjust the voltage level of your devices with this step down DC to DC converter from Texas Instruments. This converter"s single output can produce a current up to 2 A. Use this part at voltages between 4.5 V and 60 V. With an adjustable output that has a voltage of 1.2 to 57 V, this is power management at its best. This converter is 75typ % efficient. Its switching regulator has a frequency of 173 kHz. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This converter has an operating temperature range of -40 °C to 125 °C.
输出接口数 1
输出电压 1.2V ~ 57V
输出电流 2 A
静态电流 5.00 mA
调节输出数 1
开关频率 150 kHz
拓扑结构 Buck
输入电压Max 60 V
输入电压Min 4.5 V
输出电压Max 57 V
输出电压Min 1.2 V
输出电流Max 2 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5 V
输入电压 4.5V ~ 60V
安装方式 Surface Mount
引脚数 8
封装 TO-263-8
封装 TO-263-8
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LM2593HVSX-ADJ/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM2593HVS-ADJ/NOPB 德州仪器 | 完全替代 | LM2593HVSX-ADJ/NOPB和LM2593HVS-ADJ/NOPB的区别 |
LM2593HVSX-ADJ 德州仪器 | 类似代替 | LM2593HVSX-ADJ/NOPB和LM2593HVSX-ADJ的区别 |
