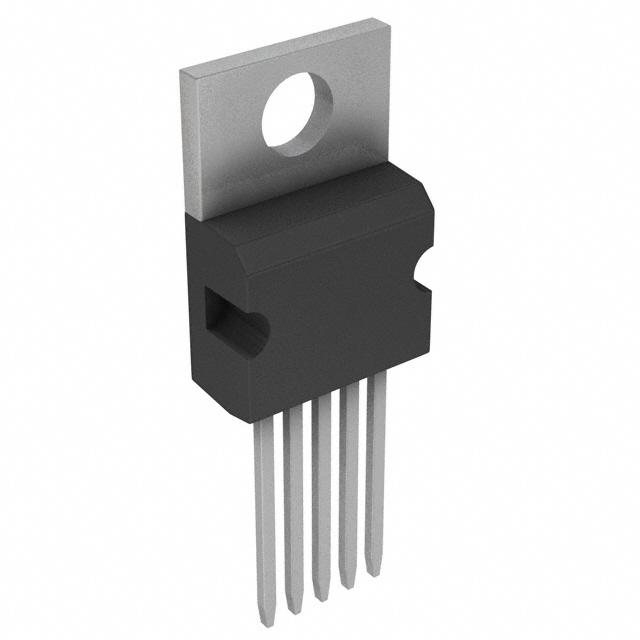

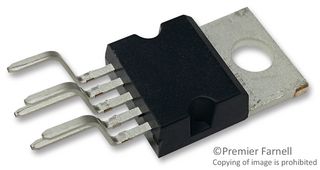

LM2577T-15/NOPB

SIMPLE SWITCHER®升压型稳压器 SIMPLE SWITCHER® Step-Up Voltage Regulator

The is a SIMPLE SWITCHER® low component count Step-up Voltage Regulator provides all of the power and control functions for step-up boost, flyback and forward converter switching regulators. This regulator is available in 15V of fixed voltage version and requiring a minimum number of external components. This monolithic integrated circuit voltage regulator associated protection circuitry, consisting of current and thermal limiting and under-voltage lockout. Other features includes a 52kHz fixed-frequency oscillator that requires no external components, a soft start mode to reduce in-rush current during start-up and current mode control for improved rejection of input voltage and output load transients.

.

Requires few external components

.

NPN output switches 3A can stand-off 65V

.

Current-mode operation for improved transient response, line regulation and current limit

.

Soft-start function reduces in-rush current during start-up

.

Output switch protected by current limit, under-voltage lockout and thermal shutdown

This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
