LGN2C332MELC50

3.3mF ±20% 160V 3300mA Φ35mm

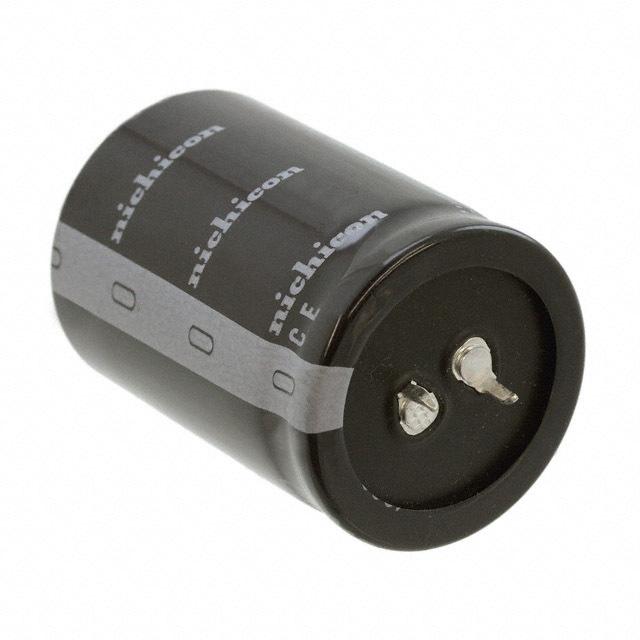

3300µF 160V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C

立创商城:
3300uF ±20% 160V

得捷:
CAP ALUM 3300UF 20% 160V SNAP

艾睿:

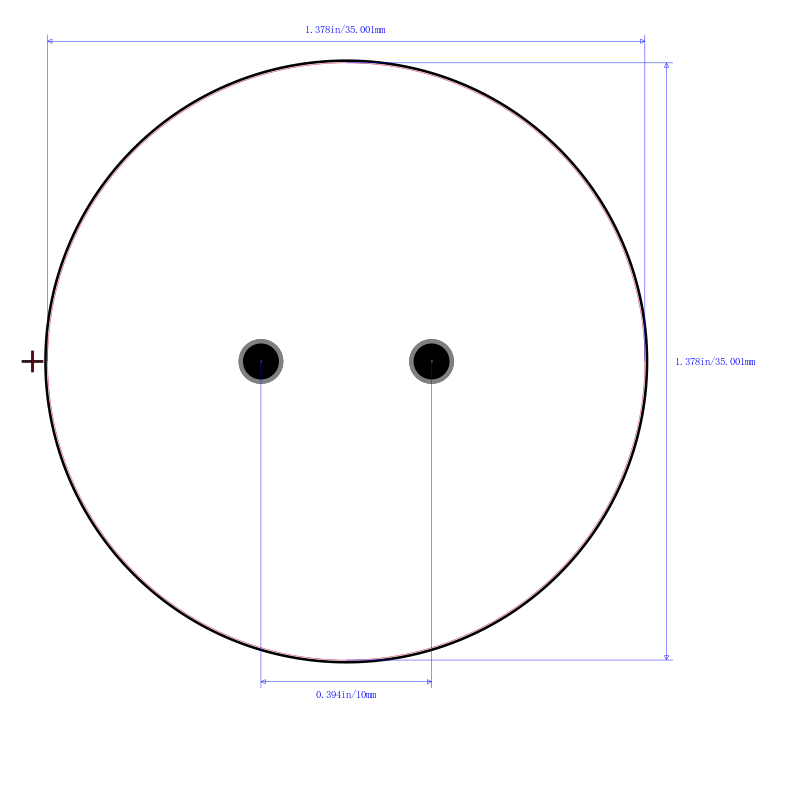

This electrolytic LGN2C332MELC50 aluminum capacitor from Nichicon has a relatively high ESR meaning that it easily generates high heat for a given current level. It can withstand a voltage of 160 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. The LGN2C332MELC50 aluminum electrolytic capacitor has a snap-in termination style. Its leakage current is 2170@5Min μA. Its capacitance value is 3300uF. It has a tolerance of 20%. This product is 50 mm tall with a diameter of 35 mm.

安富利:
Cap Aluminum 3300uF 160V 20% 35 X 50mm 10mm 3300mA 2000 hr 105°C Bulk
