LLS2W561MELC

560uF ±20% 450V Φ35mm 50mm

560 µF 450 V 铝电解器 径向，Can - 卡入式 - 85°C 时为 3000 小时

得捷:
CAP ALUM 560UF 20% 450V SNAP

立创商城:
560uF ±20% 450V

艾睿:

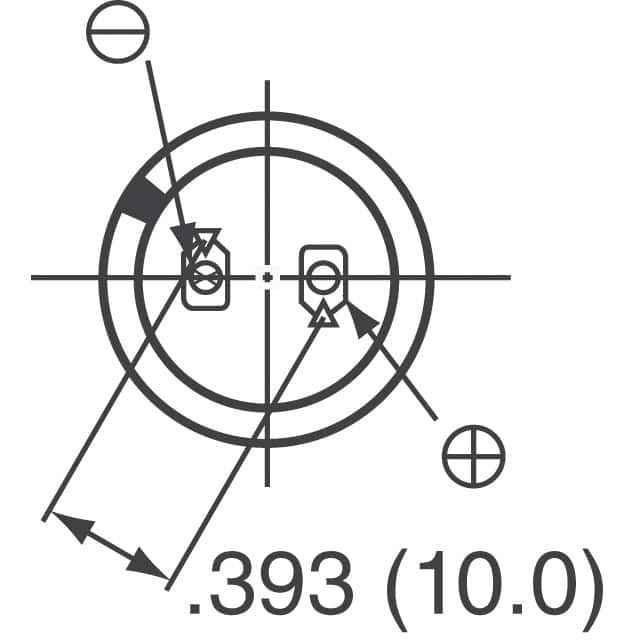

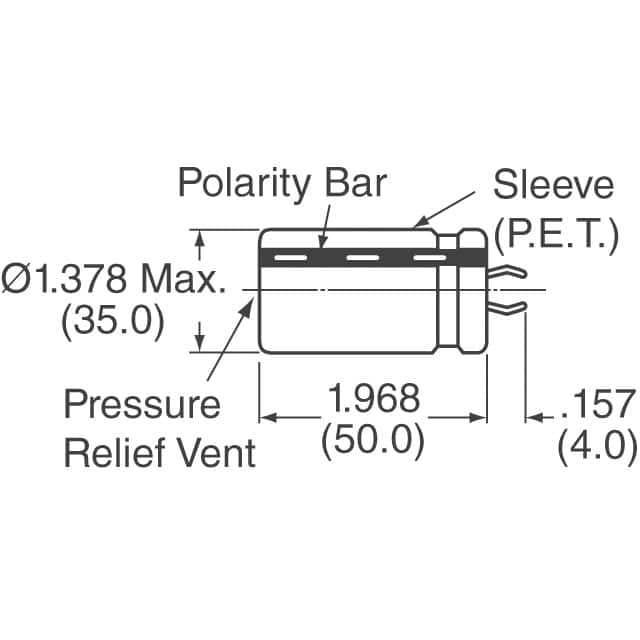

Using the aluminum anode based electrolytic LLS2W561MELC electrolytic capacitor, developed by Nichicon, you can filter out lower signal frequencies. It can withstand a voltage of 450 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. Its leakage current is 1500@5Min μA. The LLS2W561MELC aluminum electrolytic capacitor has a snap-in termination style. Its capacitance value is 560uF. This product is 50 mm tall with a diameter of 35 mm. It has a tolerance of 20%.

Allied Electronics:
Capacitor; Al Electrolytic; Cap 560 uF; Tol 20%; Vol-Rtg 450 VDC; Snap-In; 35x50mm

安富利:
Cap Aluminum 560uF 450V 20% 35 X 50mm 10mm 2880mA 3000 hr 85°C Bulk

TME:
Capacitor: electrolytic; THT; 560uF; 450VDC; Ø35x50mm; ±20%; 3000h
