LM2700MT-ADJ/NOPB

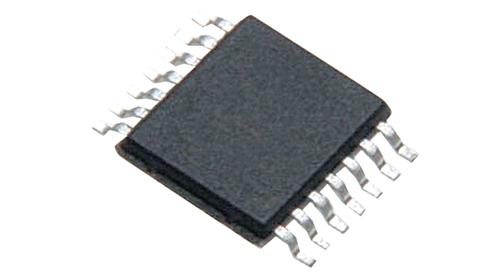

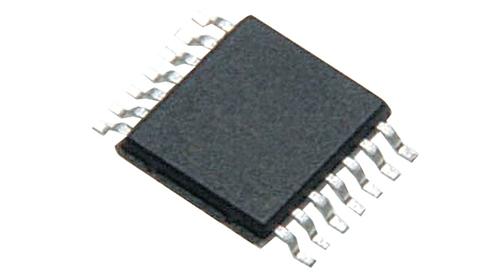

TEXAS INSTRUMENTS  LM2700MT-ADJ/NOPB  芯片, 升压直流/直流转换器, PWM, 14-TSSOP

DESCRIPON

The LM2700 is a step-up DC/DC converter with a 3.6A, 80mΩ internal switch and pin selectable operating frequency. With the ability to produce 500mA at 8V from a single Lithium Ion battery, the LM2700 is an ideal part for biasing LCD displays.

FEATURES

• 3.6A, 0.08Ω, Internal Switch

• Operating Input Voltage Range of 2.2V to 12V

• Input Undervoltage Protection

• Adjustable Output Voltage up to 17.5V

• 600kHz/1.25MHz Pin Selectable Frequency Operation

• Over Temperature Protection

• Small 14-Lead TSSOP or WSON Package

APPLICATIONS

• LCD Bias Supplies

• Handheld Devices

• Portable Applications

• GSM/CDMA Phones

• Digital Cameras
