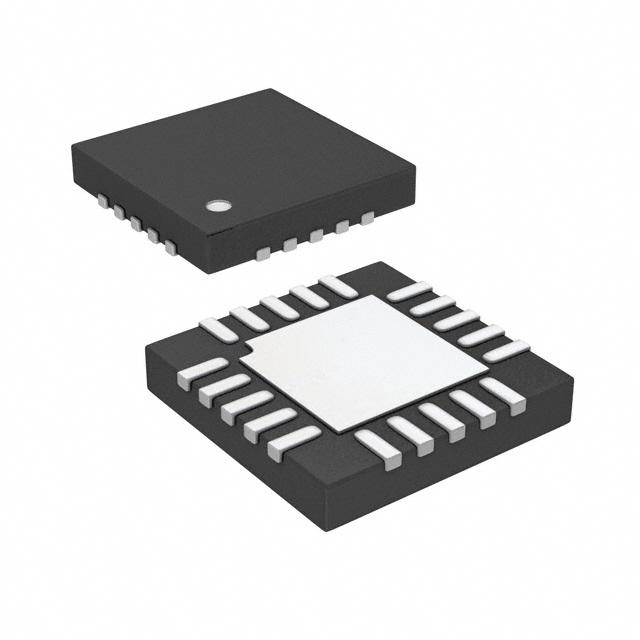

LT3572EUF#PBF

LINEAR TECHNOLOGY  LT3572EUF#PBF  芯片, 双路压电型电机驱动器, 900mA, 20QFN

The is a highly integrated dual full-bridge Piezo Motor Driver with 900mA boost converter. Each Piezo driver can be independently turned ON or OFF along with the boost converter. The boost regulator has a soft-start capability that limits the inrush current at start-up. The boost regulator switching frequency is set by an external resistor or the frequency can be synchronized by an external clock. A PGOOD pin indicates when the output of the boost converter is in regulation and the Piezo driver is allowed to start switching.

.

Synchronizable up to 2.5MHz

.

Soft-start

.

Separate enable for each piezo driver and boost converter

.

900mA Boost converter

.

Dual full-bridge Piezo drivers

.

Programmable switching frequency from 500kHz to 2.25MHz
