LGL2W821MELC50

GL 系列超小型压扣式端子类型铝电解电容器 105°C 超小型号，因此适用于精简设备 ### 2 针 105 ° C

GL 系列超小型

压扣式端子类型铝电解器

105°C 超小型号，因此适用于精简设备

欧时:

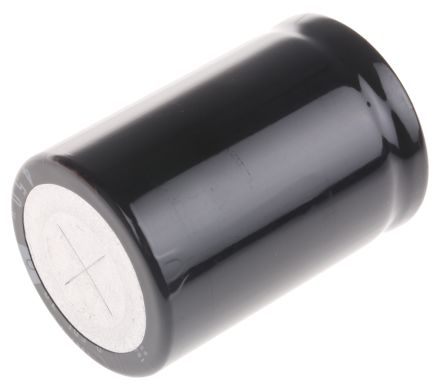

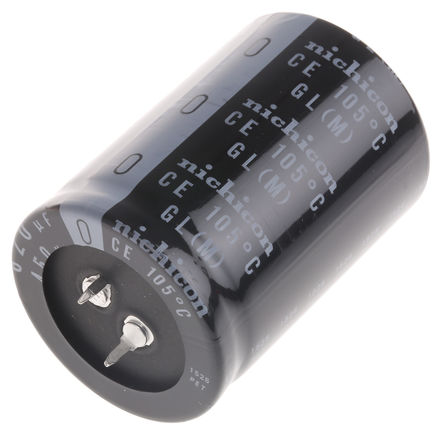

Nichicon 铝电解电容器 GL 系列 450V dc 820μF 通孔 LGL2W821MELC50, ±20%容差, 最高+105°C

立创商城:
820uF ±20% 450V

得捷:
CAP ALUM 820UF 20% 450V SNAP

贸泽:
Aluminum Electrolytic Capacitors - Snap In 450volts 820uF Ultra Small Sz

艾睿:

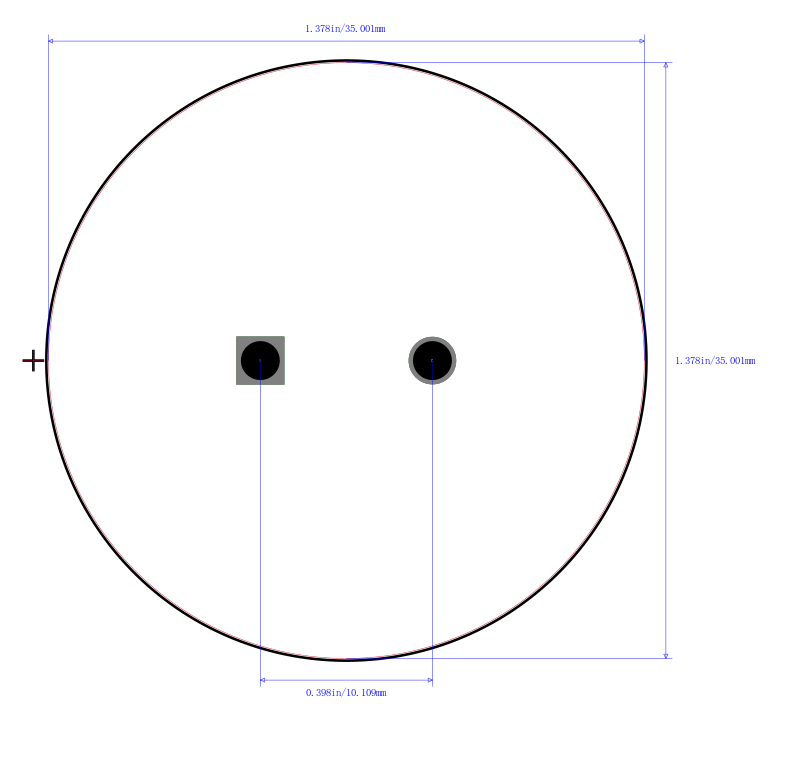

Are you looking for a capacitor that is low cost, high capacitance and has a high energy density? Then this electrolytic LGL2W821MELC50 aluminum capacitor from Nichicon is the one for you! It can withstand a voltage of 450 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. Its capacitance value is 820uF. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. Its leakage current is 1820@5Min μA. This product is 50 mm tall with a diameter of 35 mm. The LGL2W821MELC50 aluminum electrolytic capacitor has a snap-in termination style.

Allied Electronics:
820uF 450 V dc Aluminium Electrolytic Capacitor, GL Series 2000h 35Dia.x50mm

安富利:
Cap Aluminum 820uF 450V 20% 35 X 50mm Snap-In 10mm 1930mA 2000h 105°C Bulk

Verical:
Cap Aluminum Lytic 820uF 450V 20% 35 X 50mm Snap-In 10mm 1930mA 2000h 105C Bulk

Newark:
# NICHICON  LGL2W821MELC50  Electrolytic Capacitor, Snap-in, 820 µF, 450 V, GL Series, ± 20%, Quick Connect, Snap-In, 35 mm
