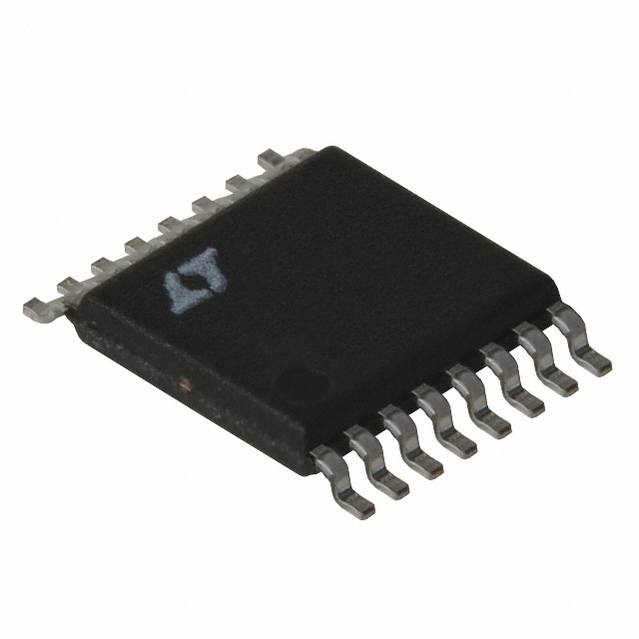

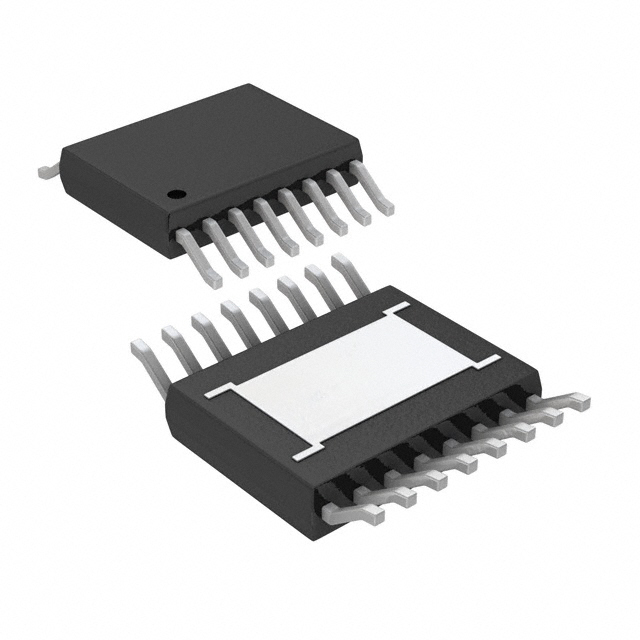

LT3028IFE#PBF

低压差稳压器 2x 100mA/500mA L Drop, L N, uP Regs w/ I

This LDO linear regulator from is used to manipulate the voltage level of your circuit. Its typical dropout voltage at current is 0.12@10mA|0.17@50mA|0.21@100mA|0.32@500mA|0.1@1mA|0.17@10mA|0.24@50mA|0.3@100mA V. This voltage regulation device"s 2 outputs can produce a current up to 0.1|0.5 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 1.8 V that does not exceed 20 V. With an adjustable output that has a voltage of 1.22 to 20|1.22 to 20 V, this is power management at its best. Operate at a constant current by utilizing the load regulation of 12mV and line regulation of 10mV. Its polarity is positive. The maximum dropout voltage is 0.19@10mA|0.22@50mA|0.28@100mA|0.37@500mA|0.15@1mA|0.22@10mA|0.31@50mA|0.35@100mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C.
