LM22675QMR-5.0/NOPB

具有精密启用的 1A SIMPLE SWITCHER，降压稳压器 8-SO PowerPAD -40 to 125

DESCRIPON

The LM22675 switching regulator provides all of the functions necessary to implement an efficient high voltage step-down buck regulator using a minimum of external components. This easy to use regulator incorporates a 42V N-channel MOSFET switch capable of providing up to 1A of load current. Excellent line and load regulation along with high efficiency >90% are featured. Voltage mode control offers short minimum on-time, allowing the widest ratio between input and output voltages. Internal loop compensation means that the user is free from the tedious task of calculating the loop compensation components. Fixed 5V output and adjustable output voltage options are available. A switching frequency of 500 kHz allows for small external components and

good transient response. A precision enable input allows simplification of regulator control and system power sequencing. In shutdown mode the regulator draws only 25 µA typ.. Built in soft-start 500µs, typ saves external components. The LM22675 also has built in thermal shutdown, and current limiting to protect against accidental overloads.

FEATURES

• Wide Input Voltage Range: 4.5V to 42V

• Internally Compensated Voltage Mode Control

• Stable with Low ESR Ceramic Capacitors

• 200 mΩ N-Channel MOSFET

• Output Voltage Options:

– -ADJ Outputs as Low as 1.285V

– -5.0 Output Fixed to 5V

• ±1.5% Feedback Reference Accuracy

• Switching Frequency of 500 kHz

• -40°C to 125°C Operating Junction Temperature Range

• Precision Enable Pin

• Integrated Boot-Strap Diode

• Integrated Soft-Start

• Fully WEBENCH® Enabled

• Step-Down and Inverting Buck-Boost Applications

• LM22675Q is an Automotive Grade Product that is AEC-Q100 Grade 1 Qualified -40°C to +125°C Operating Junction Temperature

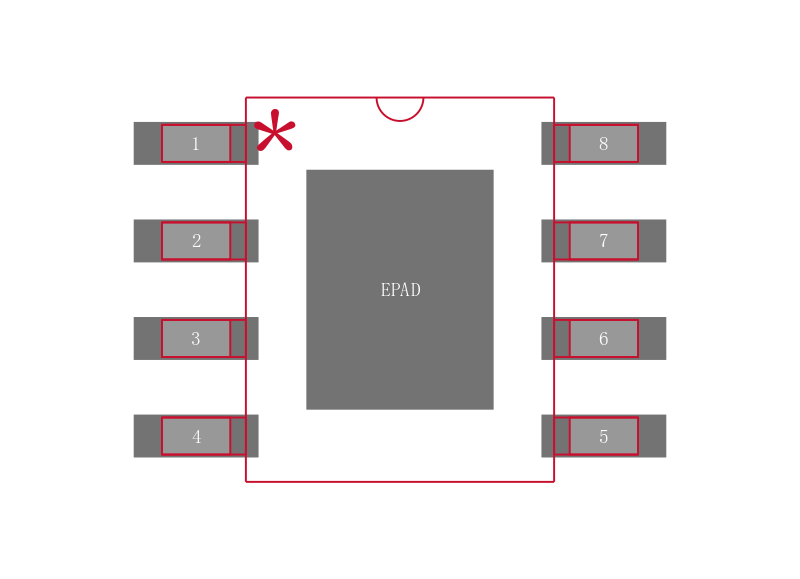

• SO PowerPAD-8 Exposed Pad Package

APPLICATIONS

• Industrial Control

• Telecom and Datacom Systems

• Embedded Systems

• Conversions from Standard 24V, 12V and 5V Input Rails
