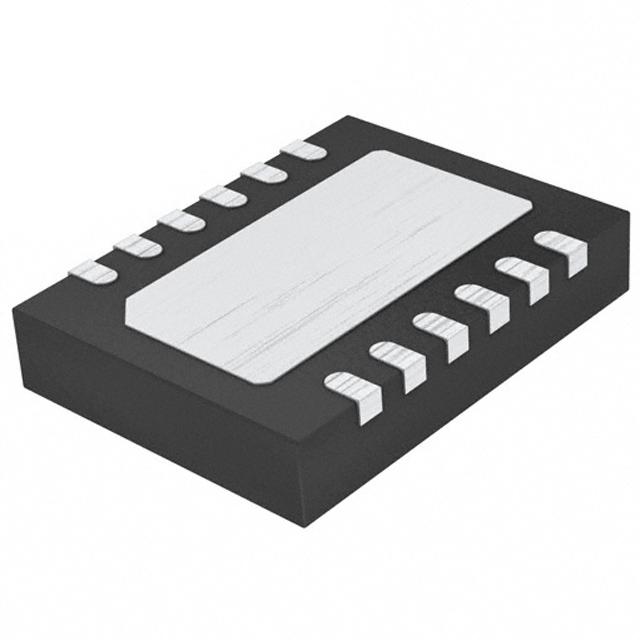

LINEAR TECHNOLOGY LT3024IDE#PBF 芯片, 稳压器, LDO, 双路, 可调, 0.3VDO, 0.5A, 12DFN
This LDO linear regulator from acts like a variable resistor to maintain a steady voltage level. Its typical dropout voltage at current is 0.13@10mA|0.17@50mA|0.2@100mA|0.3@500mA|0.1@1mA|0.17@10mA|0.24@50mA|0.3@100mA V. This voltage regulation device"s 2 outputs can produce a current up to 0.1|0.5 A. The best way to provide power to your application is by using this, which needs a voltage of at least 1.8 V and no higher than 20 V. With an adjustable output that has a voltage of 1.22 to 20 V, this is power management at its best. Users like the load regulation of 12mV and line regulation of 10mV. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. The maximum dropout voltage is 0.19@10mA|0.22@50mA|0.34@100mA|0.35@500mA|0.15@1mA|0.22@10mA|0.31@50mA|0.35@100mA V. Its polarity is positive.
输出接口数 2
输出电压 1.22V ~ 20V
输出电流 100mA, 500mA
针脚数 12
跌落电压 300 mV
输入电压Max 20 V
输入电压Min 1.8 V
输出电压Max 20 V
输出电压Min 1.22 V
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 1.8V ~ 20V
安装方式 Surface Mount
引脚数 12
封装 DFN-12
封装 DFN-12
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT3024IDE#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT3024IDE#TRPBF 凌力尔特 | 类似代替 | LT3024IDE#PBF和LT3024IDE#TRPBF的区别 |
