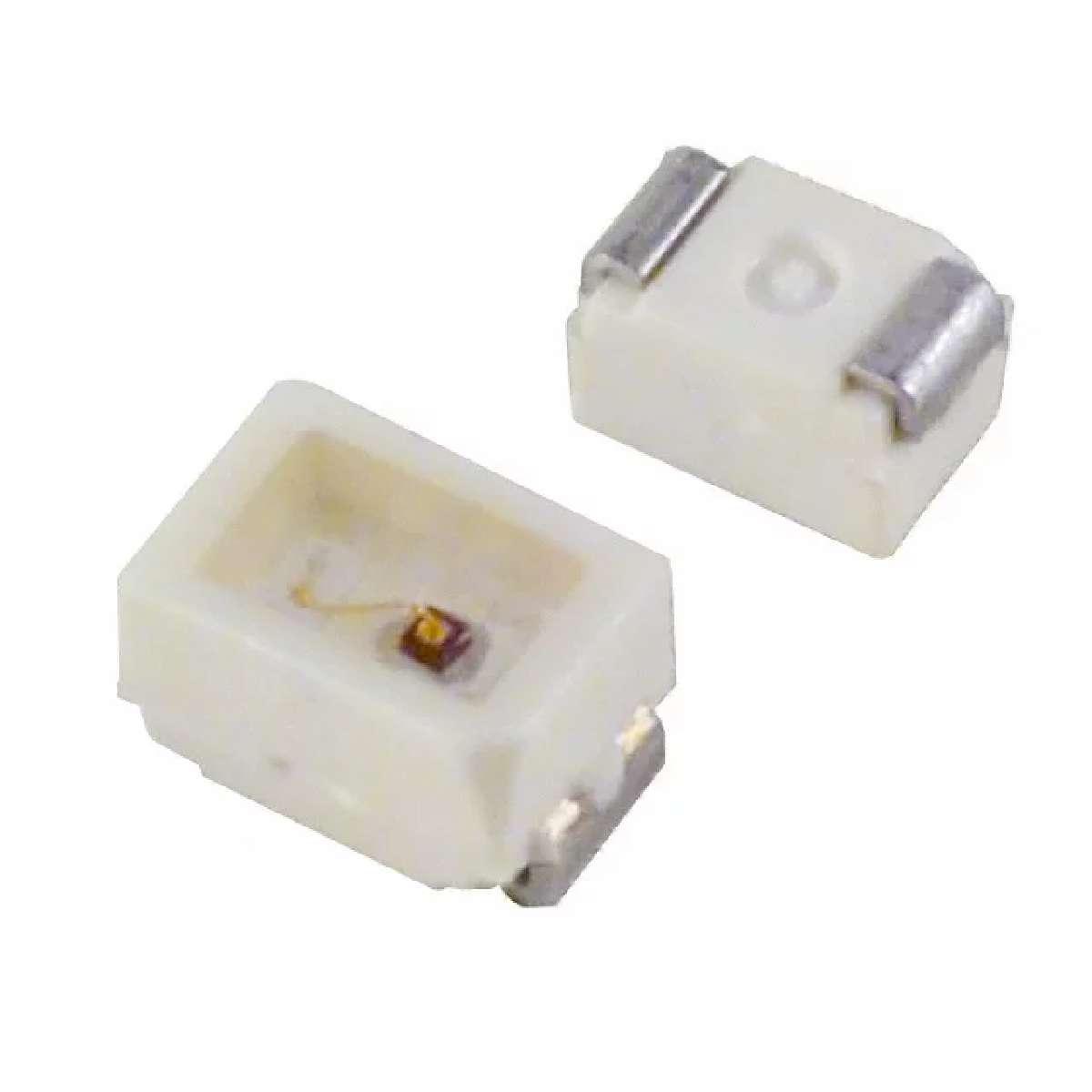

LED Uni-Color Red 645nm Automotive 2Pin SMD T/R
Red 633nm Indication - Discrete 2V 2-SMD, J-Lead
得捷:
LED RED CLEAR SMD
艾睿:
LED Uni-Color Red 645nm Automotive 2-Pin SMD T/R
安富利:
LED Uni-Color Red 645nm 2-Pin SMT T/R
Verical:
LED Uni-Color Super Red 645nm Automotive 2-Pin SMD T/R
正向电压 2 V
波长 633 nm
发光强度 140 mcd
视角 120°
峰值波长 645 nm
耗散功率 80 W
测试电流 20 mA
正向电流 30 mA
正向电压Max 2.3 V
正向电流Max 30 mA
工作温度Max 100 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 2
封装 SMD-2
宽度 1.5 mm
高度 1.40 mm
封装 SMD-2
颜色 Red
工作温度 -40℃ ~ 100℃
产品生命周期 Discontinued at Digi-Key
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LS M676-P2R1-1-Z Osram Opto 欧司朗 | 当前型号 | 当前型号 |
LS M676-P2R1-1 欧司朗 | 完全替代 | LS M676-P2R1-1-Z和LS M676-P2R1-1的区别 |
