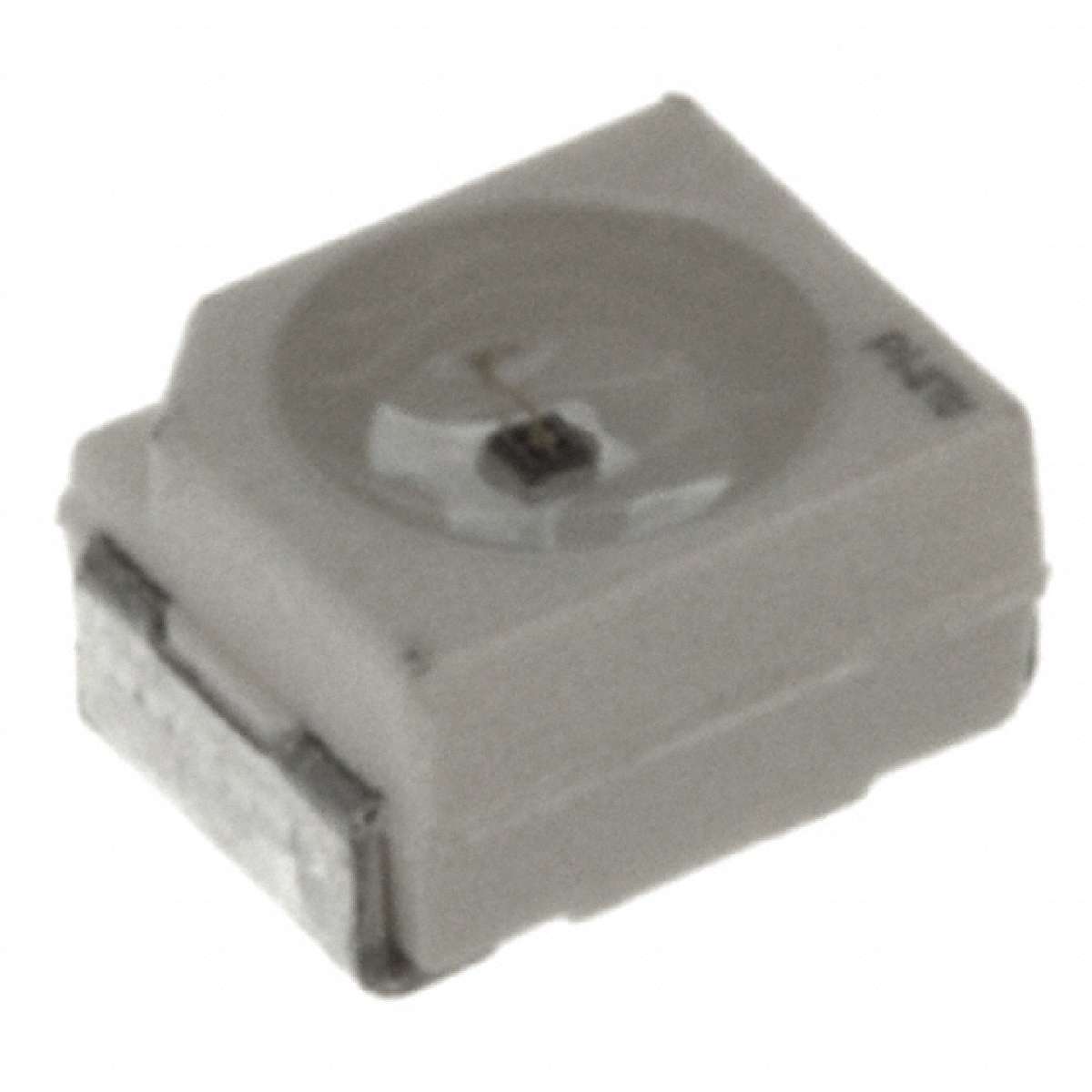

SMD LED PLCC2 Red 450mcd 120° 20mA 2.05V OSRAM
Red 625nm Indication - Discrete 2.05V 2-PLCC
得捷:
LED RED CLEAR 2PLCC SMD
贸泽:
Standard LEDs - SMD Red 625nm
艾睿:
LED Uni-Color Red 634nm Automotive 2-Pin PLCC T/R
安富利:
LED Uni-Color Red 634nm 2-Pin PLCC T/R
Verical:
LED Uni-Color Red 634nm Automotive 2-Pin PLCC T/R
Win Source:
LED RED CLEAR 2PLCC SMD / Red 625nm LED Indication - Discrete 2.05V 2-PLCC
额定功率 135 mW
正向电压 2.05 V
波长 625 nm
发光强度 1400 mcd
视角 120°
峰值波长 634 nm
测试电流 20 mA
正向电流 20 mA
正向电压Max 2.5 V
正向电流Max 50 mA
工作温度Max 100 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 2
封装 PLCC-2
长度 3.4 mm
宽度 3 mm
高度 2.1 mm
封装 PLCC-2
颜色 Red
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
