发光二极管, 超级 TOPLED®, 绿色, SMD, 2.4mm, 20 mA, 2 V, 570 nm

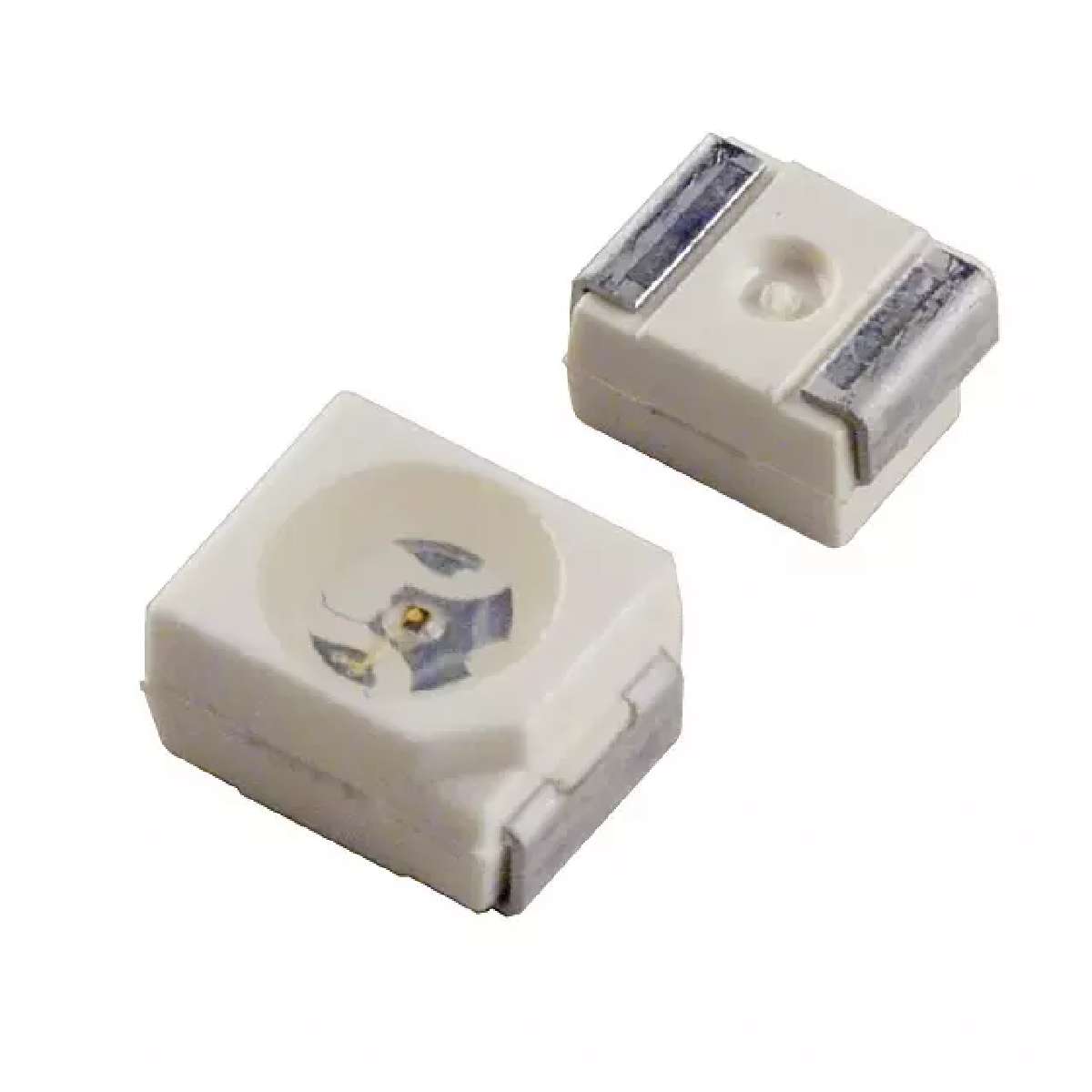

The LGT676-P1Q2-24-Z is a Hyper TOP® SMD LED with round-shaped lens and integrated reflector. It is suitable for optical indicator, coupling into light guides, backlighting, dashboard backlighting, outdoor displays, signal and symbol luminary.
正向电压 2.4 V
波长 570 nm
发光强度 112 mcd
视角 120°
峰值波长 572 nm
耗散功率 80 W
测试电流 20 mA
正向电流 30 mA
正向电压Max 2.4 V
正向电流Max 30 mA
工作温度Max 100 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 2
封装 PLCC-2
长度 3.2 mm
宽度 2.8 mm
高度 2.1 mm
封装 PLCC-2
颜色 Green
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 车用, 商业, 信令
RoHS标准 RoHS Compliant
含铅标准 Lead Free
