LB1876-TLM-E概述

芯片, 电机驱动器, 3相, 无刷电机, HSOP-36

The LB1876 is a driver for polygon mirror motors such as used in laser printers and similar equipment. It incorporates all necessary circuitry speed control + driver on a single chip. Direct PWM drive enables drive with low power loss.

Features

---

 |

.
3-phase bipolar drive
.
Direct PWM drive technique
.
Built-in lower side output diode
.
Output current limiter
.
Reference clock input circuit FG frequency equivalent
.
PLL speed control circuit
.
Phase lock detector output with masking function
.
Built-in protection circuitry includes current limiter, restraint protection, overheat protection, low-voltage protection, etc.
.
Brake method switching circuit free-run or reverse torque
.
5V regulator output
.
Power save function
LB1876-TLM-E中文资料参数规格
技术参数

输出接口数 3

输出电压 5 V

输出电流 2.5 A

针脚数 36

耗散功率 2100 mW

工作温度Max 85 ℃

工作温度Min -20 ℃

耗散功率Max 2100 mW

电源电压 9.5V ~ 28V

电源电压Max 28 V

电源电压Min 9.5 V

封装参数

安装方式 Surface Mount

引脚数 38

封装 HSOP-36

外形尺寸

封装 HSOP-36

物理参数

工作温度 -20℃ ~ 80℃ TA

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 多面镜

符合标准

RoHS标准

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

LB1876-TLM-E引脚图与封装图

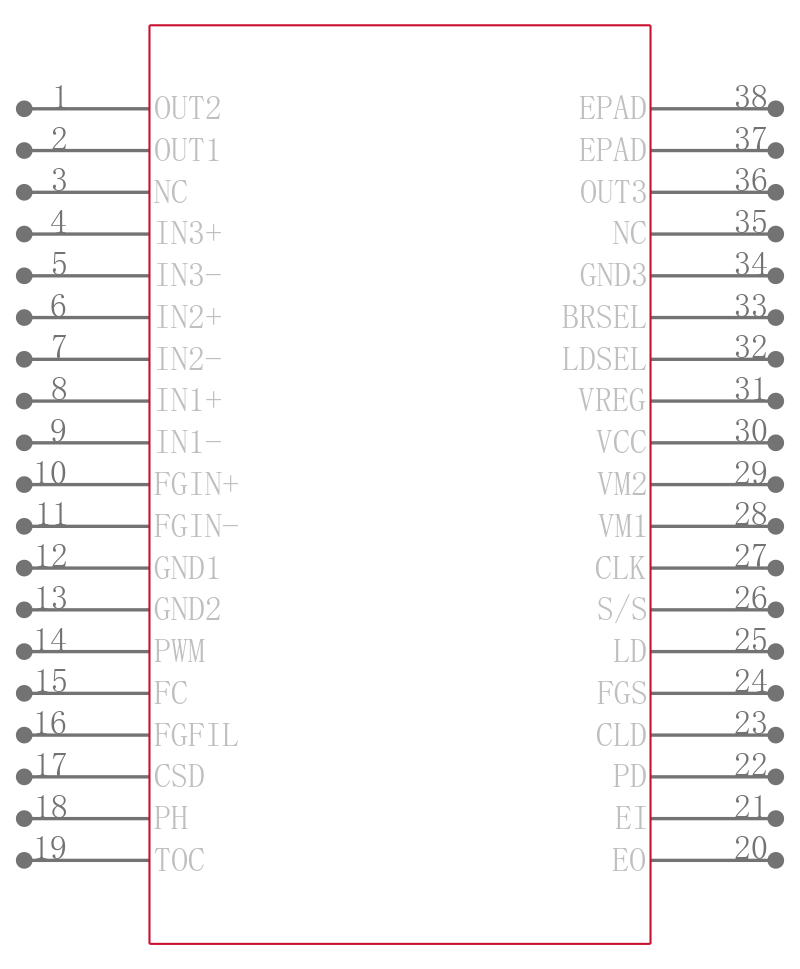

LB1876-TLM-E引脚图

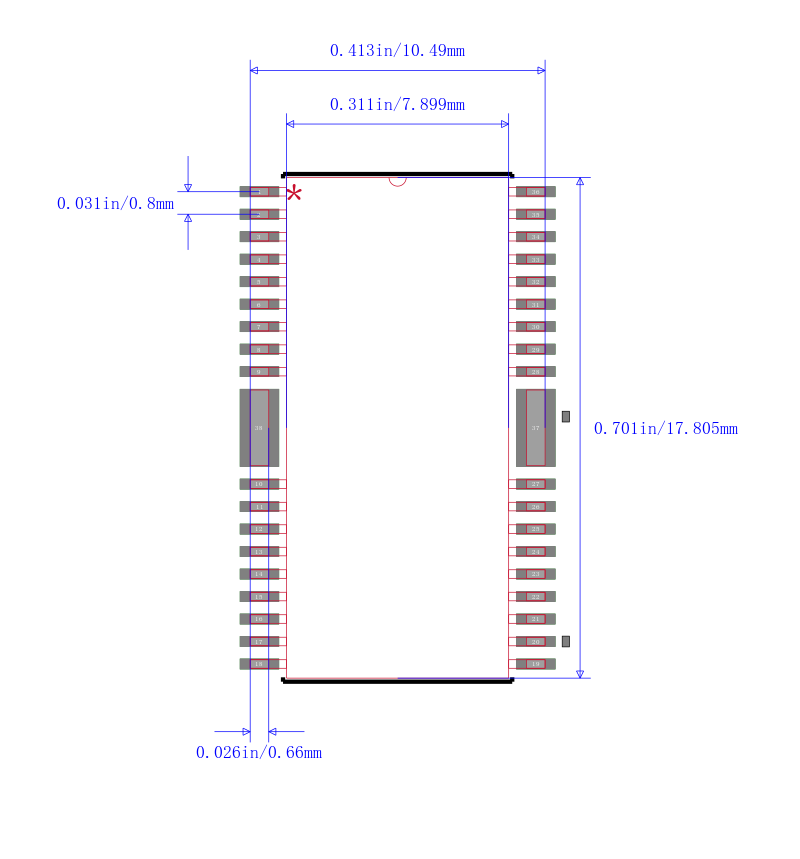

LB1876-TLM-E封装图

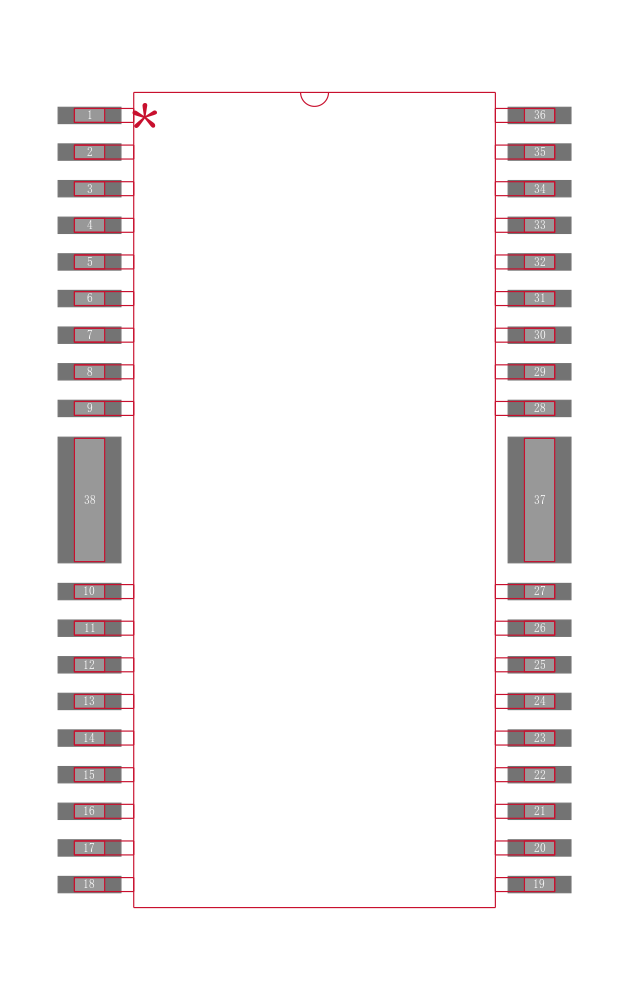

LB1876-TLM-E封装焊盘图
