开关稳压器 40V, 1.2A, 2MHz Step-Down Switching Regulator with 2uA Quiescent Current
Adjust the voltage level of your devices with this step down DC to DC converter from . This converter"s single output can produce a current up to 1.3 A. This will operate at a minimum voltage of 4.3 V and a maximum voltage of 38 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 5 V, this is power management at its best. A line regulation of 0.01%/V is necessary for providing a constant voltage level at your output. You can operate this at a switching frequency of 250 to 2000 kHz. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
输出接口数 1
输出电压 5 V
输出电流 1.2 A
开关频率 200kHz ~ 2MHz
输入电压Max 38 V
输入电压Min 4.3 V
输出电压Min 5 V
输出电流Max 1.3 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 4.3V ~ 38V
安装方式 Surface Mount
引脚数 10

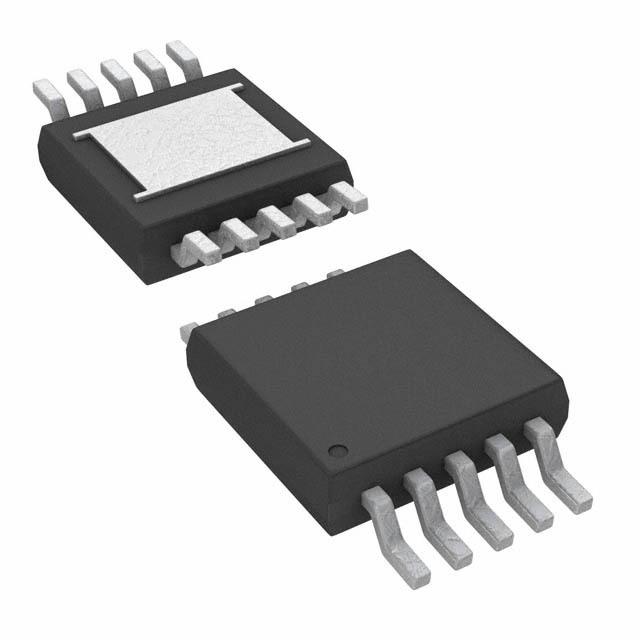

封装 MSOP-10
高度 0.86 mm
封装 MSOP-10
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LT3971EMSE-5#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT3971IMSE-5#PBF 凌力尔特 | 完全替代 | LT3971EMSE-5#PBF和LT3971IMSE-5#PBF的区别 |
LT3971EMSE-5#TRPBF 凌力尔特 | 完全替代 | LT3971EMSE-5#PBF和LT3971EMSE-5#TRPBF的区别 |
LT3971IMSE-5#TRPBF 凌力尔特 | 完全替代 | LT3971EMSE-5#PBF和LT3971IMSE-5#TRPBF的区别 |
