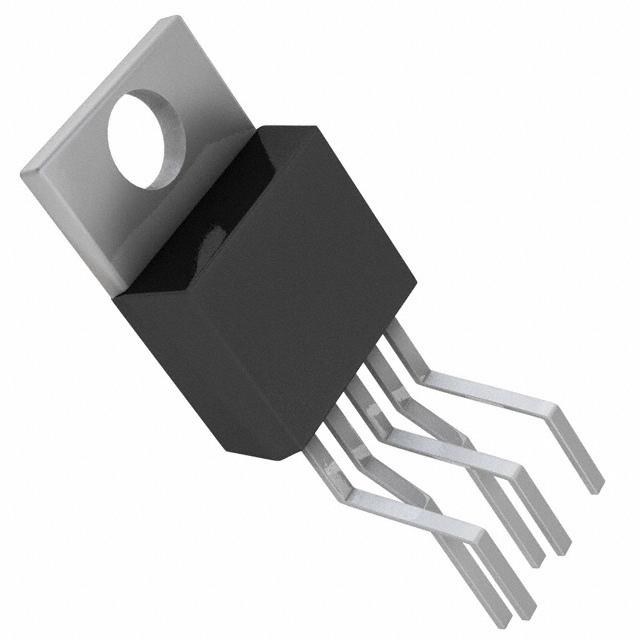

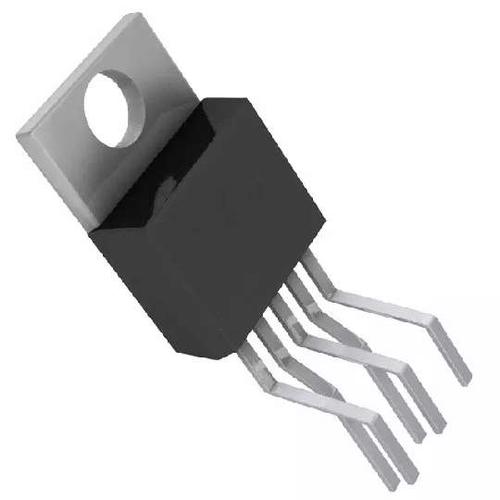

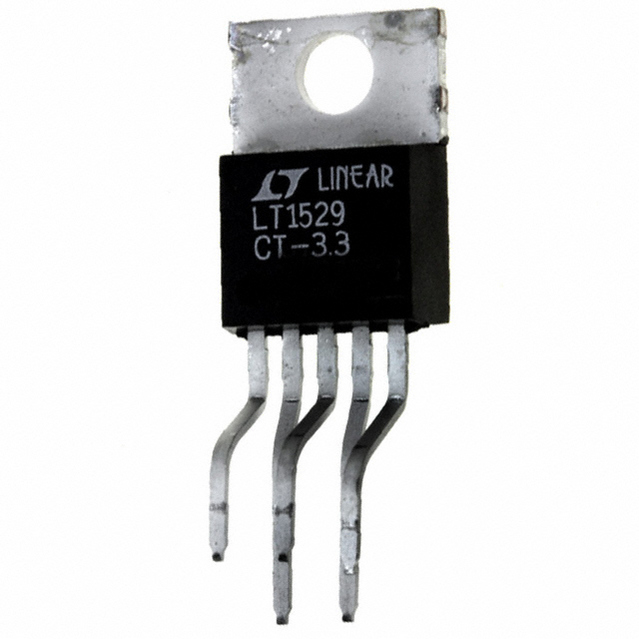

IC REG LDO 3.3V 3A TO220
This LDO linear regulator from gives you control over the voltage levels of your circuit. Its typical dropout voltage at current is 0.32@700mA|0.43@1.5A|0.6@3A V. This voltage regulation device"s single output can produce a current up to 3 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 3.8 V that does not exceed 15 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. Maintain a constant voltage level with a load regulation of 20mV and line regulation of 10mV. Its polarity is positive. This voltage regulation device has an operating temperature range of 0 °C to 125 °C. The maximum dropout voltage is 0.43@700mA|0.55@1.5A|0.75@3A V.
输出接口数 1
输入电压DC 15.0V max
输出电压 3.3 V
输出电流 3 A
供电电流 100µA ~ 160mA
跌落电压 0.32V @700mA,0.6V @3A,0.43V @1.5A
输入电压Max 15 V
输入电压Min 3.8 V
输出电压Min 3.3 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min 0 ℃
输入电压 ≤15 V
安装方式 Through Hole
引脚数 5
封装 TO-220-5
封装 TO-220-5
工作温度 0℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准
含铅标准 Lead Free
ECCN代码 EAR99
