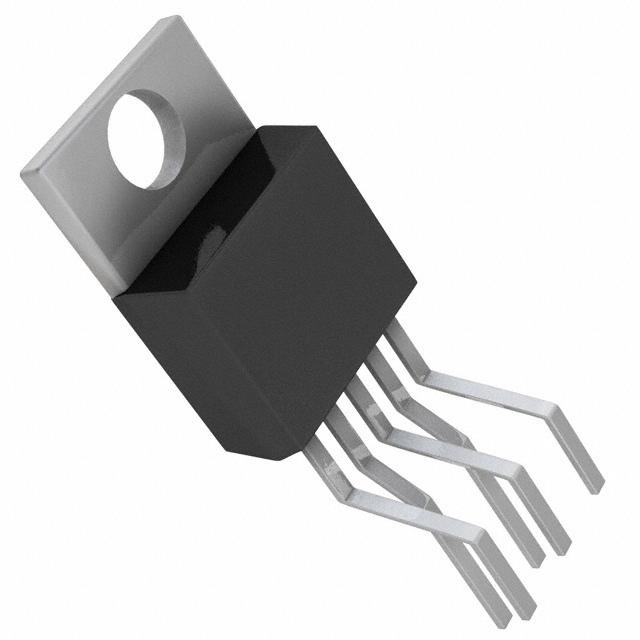

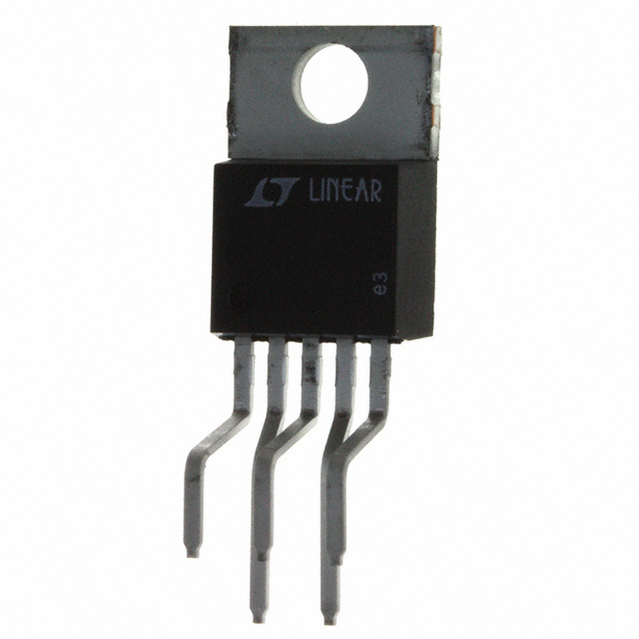

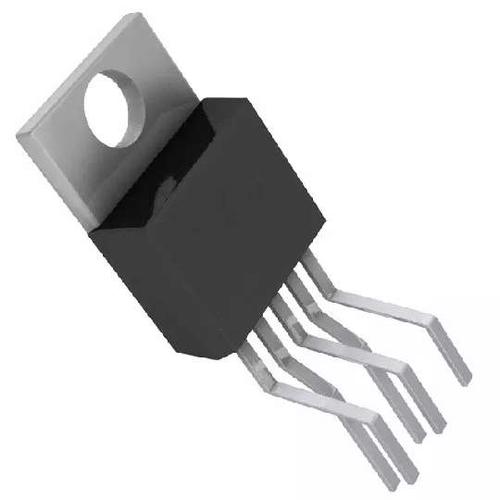

LINEAR TECHNOLOGY LT1529CT-5#PBF 固定电压稳压器, LDO, 3.9V至15V, 600mV压差, 5V输出, 3A输出, TO-220-5
The is a 5V fixed output low-dropout LDO Linear Regulator with micropower quiescent current and shutdown. The device is capable of supplying 3A of output current with a dropout voltage of 0.6V. The low quiescent current, 50µA operating and 16µA in shutdown, make them an ideal choice. The quiescent current is well controlled, it does not rise in dropout as it does with many other low-dropout LDO PNP regulators. Other features of the device include the ability to operate with small output capacitors. Also the input may be connected to voltages lower than the output voltage, including negative voltages, without reverse current flow from output to input. This makes the device ideal for backup power situations where the output is held high and the input is at ground or reversed. Under these conditions, only 16µA will flow from the output pin to ground.
输出接口数 1
输入电压DC 15.0V max
输出电压 5 V
输出电流 3 A
供电电流 100µA ~ 160mA
针脚数 5
跌落电压 600 mV
输入电压Max 15 V
输入电压Min 3.9 V
输出电压Min 5 V
输出电流Max 3 A
工作温度Max 125 ℃
工作温度Min 0 ℃
电源电压Max 15 V
输入电压 ≤15 V
安装方式 Through Hole
引脚数 5
封装 TO-220-5
高度 9.4 mm
封装 TO-220-5
工作温度 0℃ ~ 125℃
产品生命周期 Unknown
包装方式 Each
制造应用 Portable Devices, 便携式器材, Industrial, Power Management, 工业, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT1529CT-5#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1529CT-5#06PBF 凌力尔特 | 完全替代 | LT1529CT-5#PBF和LT1529CT-5#06PBF的区别 |
LT1529IT-5 亚德诺 | 功能相似 | LT1529CT-5#PBF和LT1529IT-5的区别 |
LT1529CT-5 亚德诺 | 功能相似 | LT1529CT-5#PBF和LT1529CT-5的区别 |
