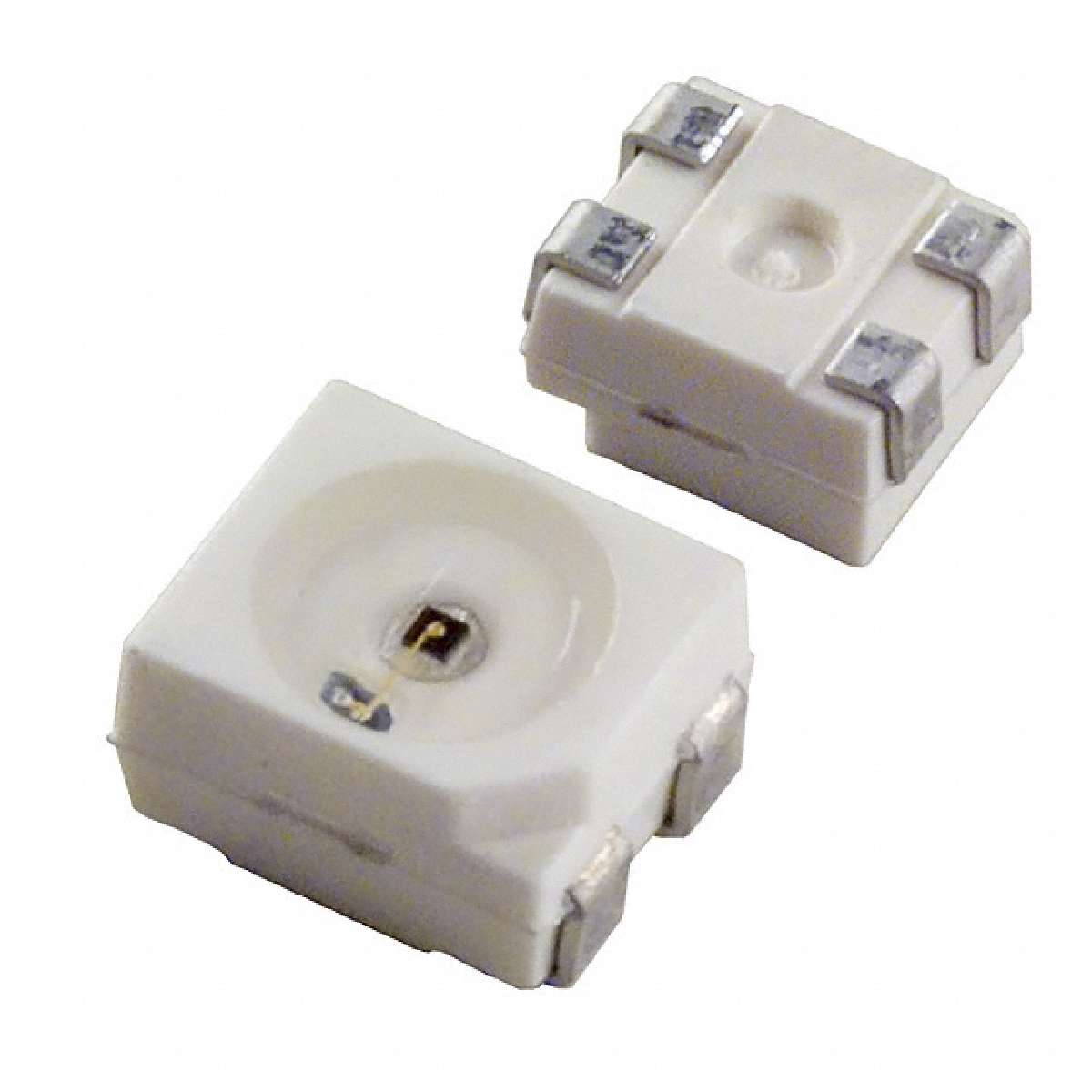

LED Uni-Color Amber 624nm 4Pin PLCC T/R
Amber 617nm Indication - Discrete 2.2V 4-PLCC
得捷:
LED AMBER CLEAR 4PLCC SMD
艾睿:
LED Uni-Color Amber 624nm Automotive 4-Pin PLCC T/R
安富利:
LED Uni-Color Amber 624nm 4-Pin PLCC T/R
Chip1Stop:
LED Uni-Color Amber 624nm 4-Pin PLCC T/R
Verical:
LED Uni-Color Amber 624nm Automotive 4-Pin PLCC T/R
正向电压 2.2 V
波长 617 nm
发光强度 1400 mcd
视角 120°
透镜样式 Non-Diffused
峰值波长 624 nm
耗散功率 180 W
测试电流 50 mA
正向电流 70 mA
正向电压Max 2.5 V
正向电流Max 70 mA
工作温度Max 100 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 4
封装 PLCC-4
长度 3.50 mm
宽度 2.8 mm
高度 2.10 mm
封装 PLCC-4
颜色 Amber
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LA E67B-U2AA-24-1-Z Osram Opto 欧司朗 | 当前型号 | 当前型号 |
LA E67B-U2AA-24-1 欧司朗 | 完全替代 | LA E67B-U2AA-24-1-Z和LA E67B-U2AA-24-1的区别 |
