标准LED-SMD Super Red, 633nm 1900mcd, 50mA

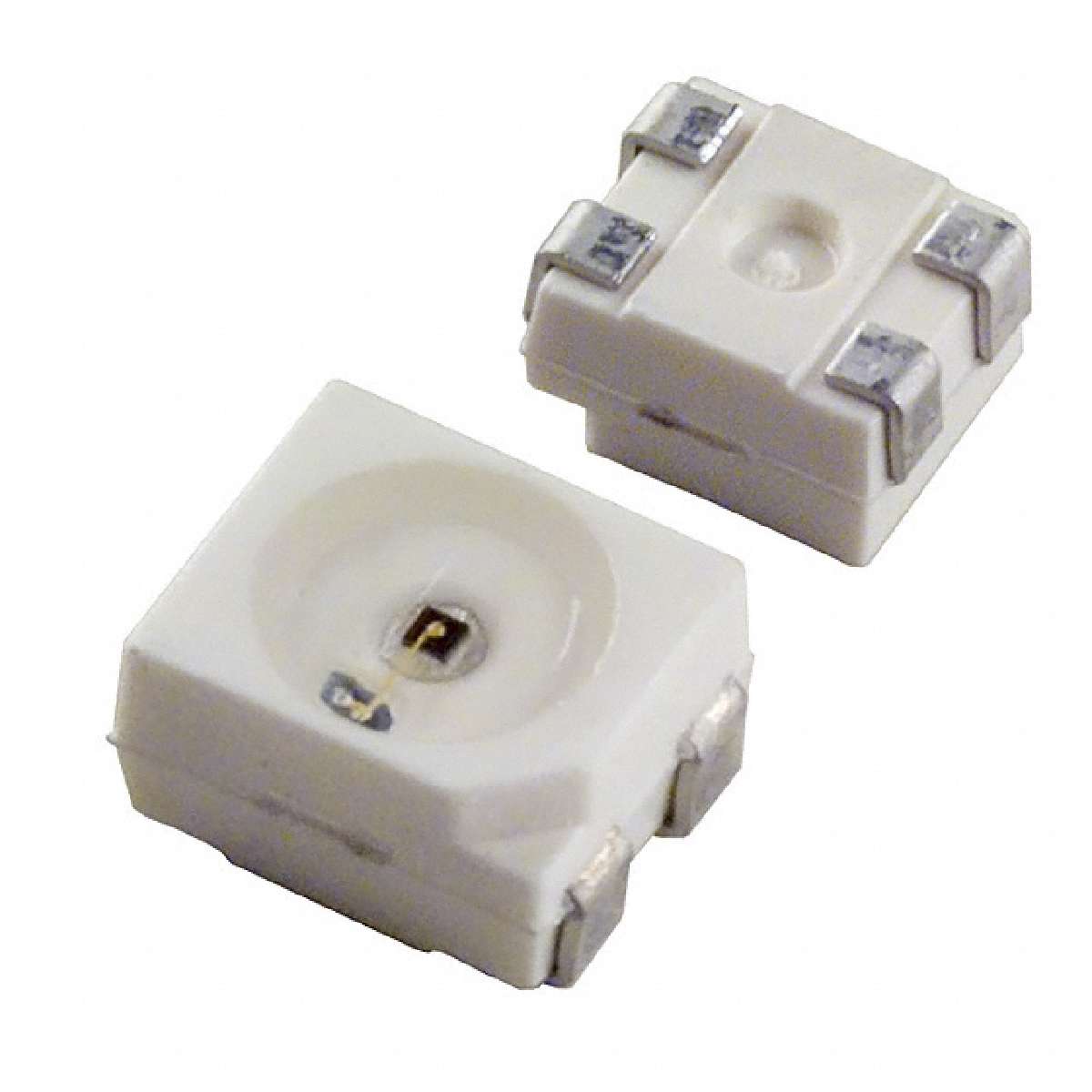

The LSE67B-T2V1-1-1-Z is a Power TOP® SMD LED with round-shaped lens. It is ideal for rear light clusters and indicators on vehicles and for display panels for traffic control systems.
正向电压 2.2 V
波长 633 nm
发光强度 900 mcd
视角 120°
透镜样式 Non-Diffused
峰值波长 645 nm
耗散功率 180 W
测试电流 50 mA
正向电流 70 mA
正向电压Max 2.5 V
正向电流Max 70 mA
工作温度Max 100 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 4
封装 PLCC-4
长度 3.2 mm
宽度 2.8 mm
高度 2.10 mm
封装 PLCC-4
颜色 Red
包装方式 Tape & Reel TR
制造应用 车用, 信令
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LS E67B-T2V1-1-1-Z Osram Opto 欧司朗 | 当前型号 | 当前型号 |
LS E67B-T2V1-1-1 欧司朗 | 完全替代 | LS E67B-T2V1-1-1-Z和LS E67B-T2V1-1-1的区别 |
