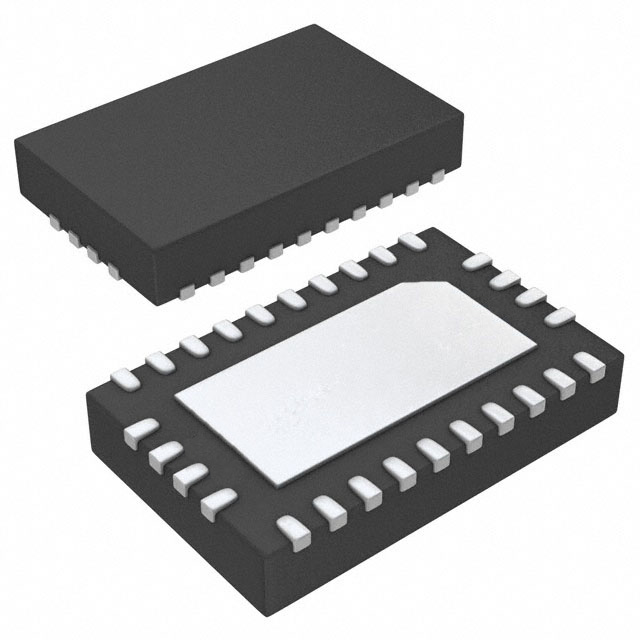

LINEAR TECHNOLOGY LT3667IUDD#PBF 芯片, 开关稳压器, LDO, 三路输出, QFN-24
Safely maintain the voltage level within your circuit to match specifications using the highly-efficient shunt voltage regulator from . This variable voltage regulator has single output. This variable voltage regulator has an input voltage of 4.3 to 40 V. It has a switching frequency of 250 to 2200 kHz. This variable voltage regulator has a minimum operating temperature of -40 °C and a maximum of 125 °C.
电源电压DC 40.0 V
输出接口数 3
输出电压 1.2V ~ 38.6V
针脚数 24
调节输出数 3
开关频率 243kHz ~ 2.2MHz
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 40 V
安装方式 Surface Mount
引脚数 24
封装 QFN-24
高度 0.75 mm
封装 QFN-24
工作温度 -40℃ ~ 125℃
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LT3667IUDD#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT3667HUDD#PBF 凌力尔特 | 完全替代 | LT3667IUDD#PBF和LT3667HUDD#PBF的区别 |
LT3667IUDD#TRPBF 凌力尔特 | 类似代替 | LT3667IUDD#PBF和LT3667IUDD#TRPBF的区别 |
