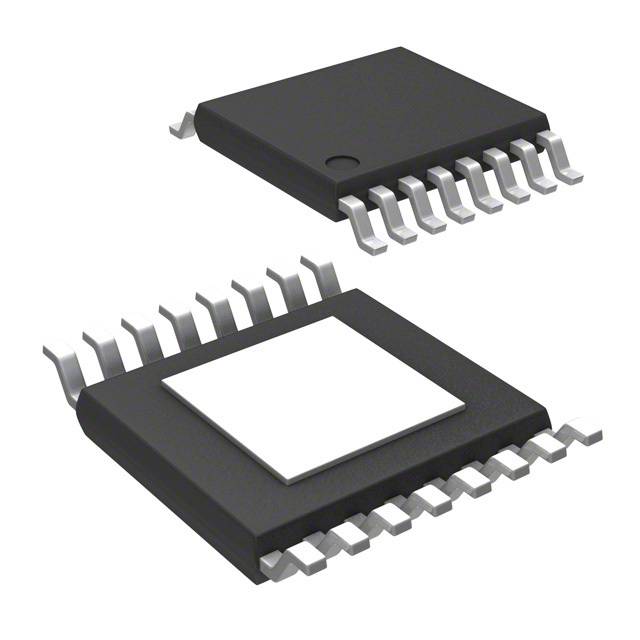

3.5V 至 36V、2A 同步降压转换器 16-HTSSOP -40 to 125
降压 开关稳压器 IC 正 可调式 1V 1 输出 2A 16-PowerTSSOP(0.173",4.40mm 宽)
得捷:
IC REG BUCK ADJ 2A 16HTSSOP
立创商城:
降压型 Vin=3.5V~36V Vout=1V~28V 2A
德州仪器TI:
3.5V to 36V, 2A Synchronous Step-Down Voltage Converter
艾睿:
Adjust the voltage level of your devices with this step down LM43602PWP DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 2 A. The best way to provide power to your application is by using this, which needs a voltage of at least 3.5 V and no higher than 36 V. With an adjustable output that has a voltage of 1 to 28 V, this is power management at its best. Its switching regulator has a frequency of 425 to 580 kHz. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
安富利:
Conv DC-DC Single Step Down 3.5V to 36V 16-Pin HTSSOP Tube
Verical:
Conv DC-DC 3.5V to 36V Synchronous Step Down Single-Out 1V to 28V 2A Automotive 16-Pin HTSSOP EP Tube
输出接口数 1
输出电压 1V ~ 28V
输出电流 2 A
静态电流 27.0 µA
调节输出数 1
开关频率 200kHz ~ 2.2MHz
拓扑结构 Buck
开关电流 4.5 A
输入电压Max 36 V
输入电压Min 3.5 V
输出电压Max 28 V
输出电压Min 1 V
输出电流Max 2 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 36 V
安装方式 Surface Mount
引脚数 16
封装 HTSSOP-16
封装 HTSSOP-16
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 无铅
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM43602PWP TI 德州仪器 | 当前型号 | 当前型号 |
LM43602PWPT 德州仪器 | 类似代替 | LM43602PWP和LM43602PWPT的区别 |
LM43602PWPR 德州仪器 | 类似代替 | LM43602PWP和LM43602PWPR的区别 |
