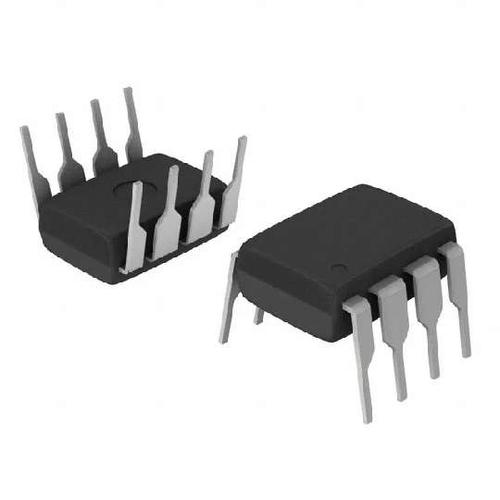

开关稳压器 1.25A Hi Eff Sw Reg
Adjust the voltage level of your devices with this step up DC to DC converter from . This converter has single output. This will operate at a minimum voltage of 3 V and a maximum voltage of 60 V, making it easy to control the power in your circuit. With an adjustable output that has a voltage of 65Max V and maximum output power of 20 W, this is power management at its best. Maintain a constant voltage level with a line regulation of 0.03%/V. You can operate this at a switching frequency of 35 to 45 kHz. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
输出接口数 1
输出电压 1.244V ~ 40V
输出电流 1.25 A
静态电流 6 mA
开关频率 40 kHz
输入电压Max 40 V
输入电压Min 3 V
输出电压Min 1.25 V
输出功率Max 20 W
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 3 V
输入电压 3 V
安装方式 Through Hole
引脚数 8
封装 PDIP-8
高度 3.3 mm
封装 PDIP-8
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
