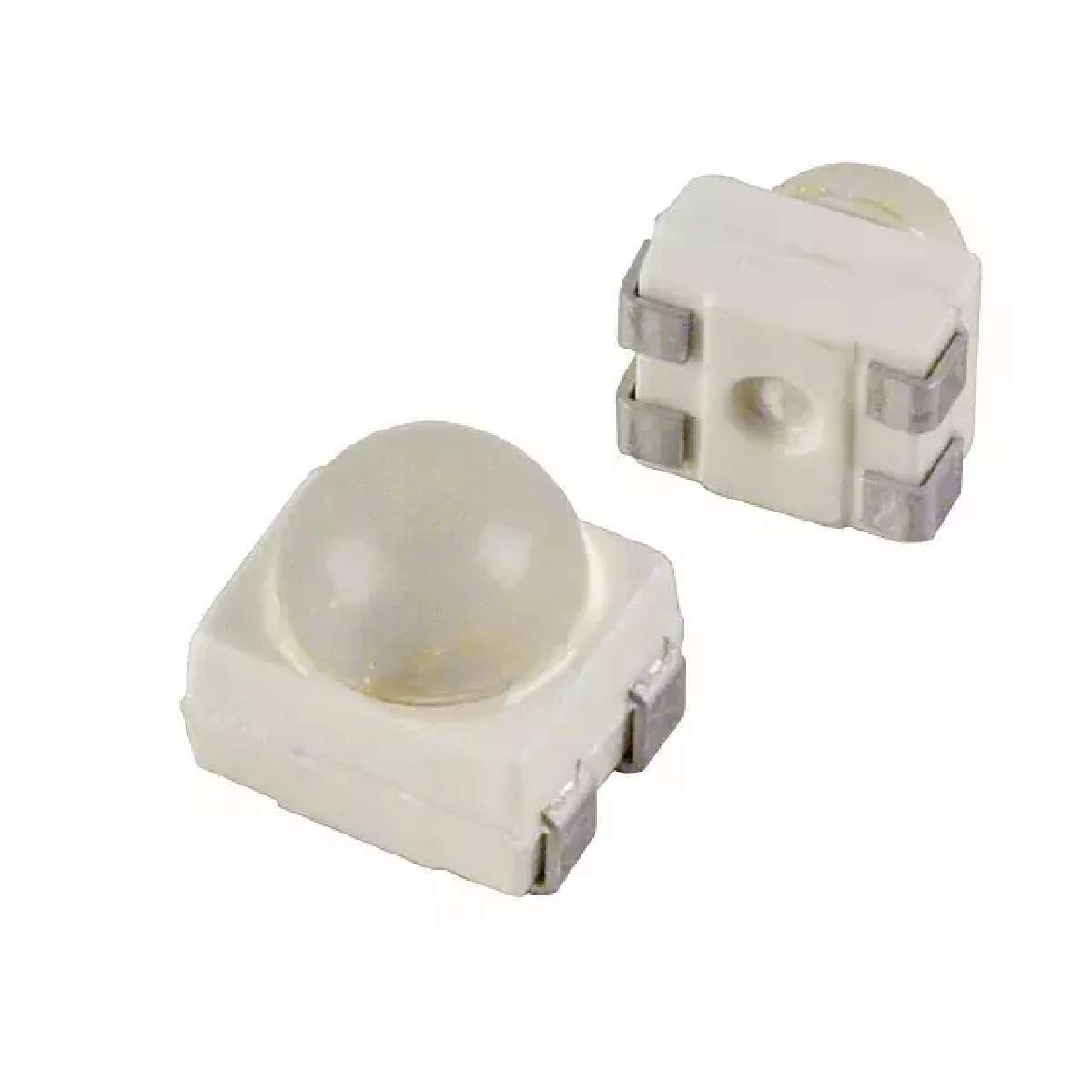

SMD LED PLCC4 Yellow 2335mcd 60° 50mA 2.2V OSRAM
黄色 587nm 指示 - 分立 2.2V 4-PLCC
得捷:
LED YELLOW CLEAR 4PLCC SMD
艾睿:
LED Uni-Color Yellow 594nm Automotive 4-Pin PLCC T/R
安富利:
LED Uni-Color Yellow 594nm 4-Pin PLCC T/R
Verical:
LED Uni-Color Yellow 594nm Automotive 4-Pin PLCC T/R
正向电压 2.2 V
波长 587 nm
发光强度 3550 mcd
视角 60°
峰值波长 594 nm
耗散功率 180 W
测试电流 50 mA
正向电流 70 mA
正向电压Max 2.5 V
正向电流Max 70 mA
工作温度Max 100 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 4
封装 PLCC-4

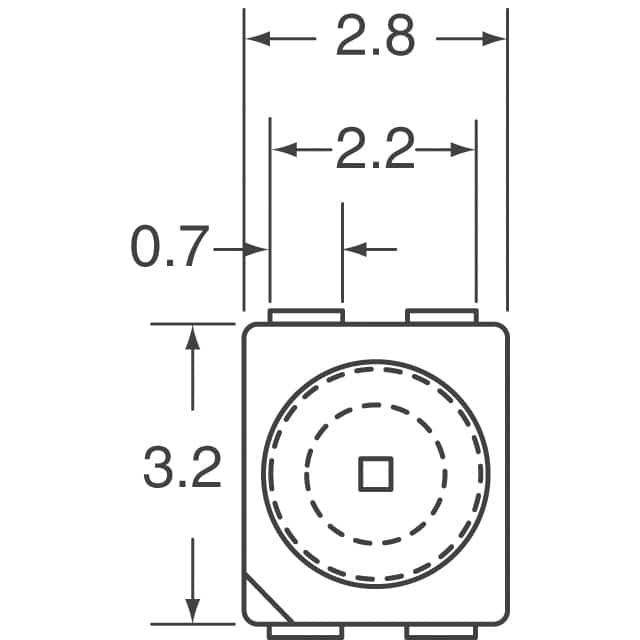

宽度 2.8 mm
高度 3.50 mm
封装 PLCC-4
颜色 Yellow
工作温度 -40℃ ~ 100℃
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
