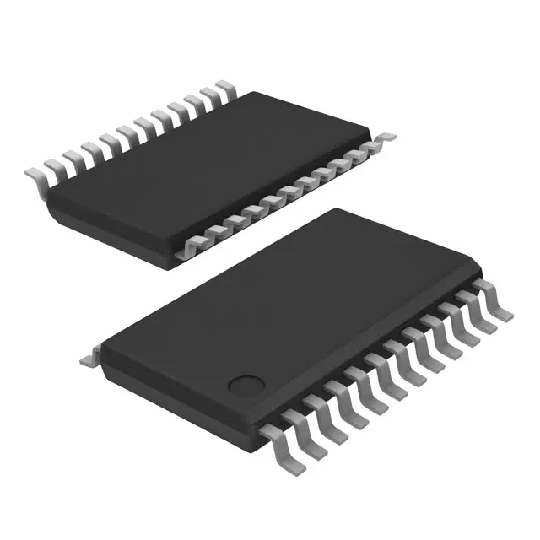

TEXAS INSTRUMENTS LM81CIMT-3/NOPB 芯片, 微处理器监控器, 1.4mA, 3.8V, 24-TSSOP
For an extra layer of protection, use this microprocessor supervisory circuit from Texas Instruments to have another processor take control in case of an emergency. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This device has a minimum operating supply voltage of 2.8 V and a maximum of 3.8 V. This part has an operating temperature range of -40 °C to 125 °C.
电源电压DC 3.30 V
供电电流 1.40 mA
针脚数 24
位数 9
静态电流 900 µA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±3℃ Max
电源电压 2.8V ~ 3.8V
电源电压Max 3.8 V
电源电压Min 2.8 V
安装方式 Surface Mount
引脚数 24
封装 TSSOP-24
封装 TSSOP-24
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LM81CIMT-3/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM81BIMTX-3/NOPB 德州仪器 | 完全替代 | LM81CIMT-3/NOPB和LM81BIMTX-3/NOPB的区别 |
LM81CIMTX-3/NOPB 德州仪器 | 完全替代 | LM81CIMT-3/NOPB和LM81CIMTX-3/NOPB的区别 |
