LT3081ER#PBF

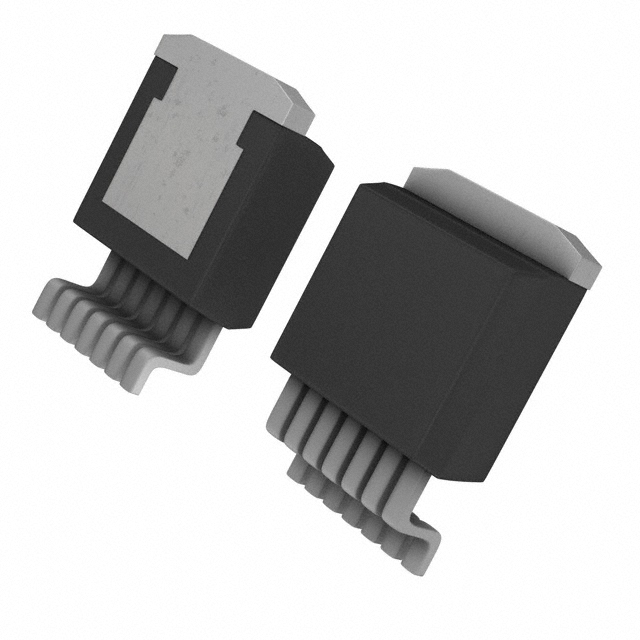

LINEAR TECHNOLOGY  LT3081ER#PBF  电压稳压器, LDO, 可调, 1.2V至36V输入, 1.23V压差, 0V至34.5V/1.5A输出, TO-263-7

The is a 1.5A single resistor Rugged Linear Regulator with monitor. The LT3081 is a low dropout linear regulator designed for rugged industrial applications. Key features of the IC are the extended safe operating area SOA, output current monitor, temperature monitor and programmable current limit. The LT3081 can be paralleled for higher output current or heat spreading. The device withstands reverse input and reverse output-to-input voltages without reverse current flow. The LT3081 precision 50µA reference current source allows a single resistor to program output voltage to any level between zero and 34.5V. The current reference architecture makes load regulation independent of output voltage. The LT3081 is stable with or without input and output capacitors. The output current monitor IOUT/5000 and die junction temperature output 1µA/°C provide system monitoring and debug capability. In addition, a single resistor programs current limit.

.

Extended safe operating area

.

Stable with or without input/output capacitors

.

Single resistor sets output voltage

.

Parallel multiple devices for higher current or heat spreading

.

Programmable current limit

.

Reverse-battery and reverse-current protection

.

Output current monitor of IMON = IOUT/5000

.

Junction temperature monitor of 1µA/°C

.

Output adjustable to 0V

.

Output voltage noise of 27µVRMS

.

<1mV Load regulation typical independent of Vout
