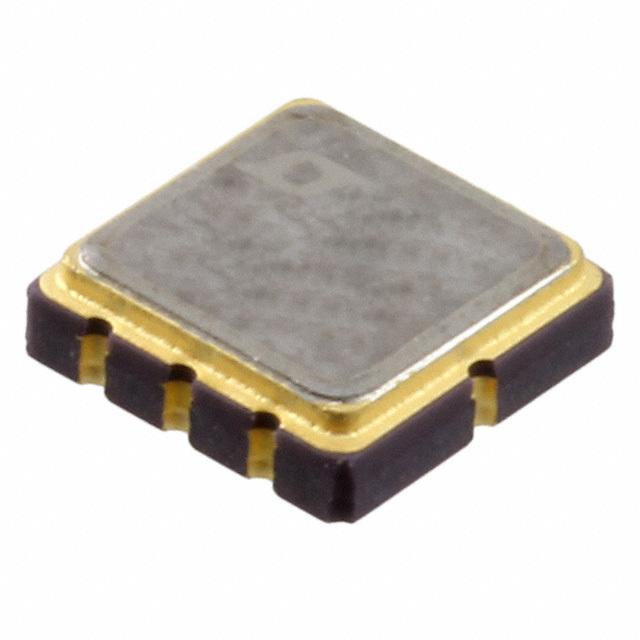

LINEAR TECHNOLOGY LTC6652BHLS8-5#PBF 电压基准, 精密, 低漂移, 低噪, 系列 - 固定, LTC6652系列, 5V, LCC-8
The is a precision, low drift and low noise buffered reference in 8 pin LCC package. High order curvature compensation allows this reference to achieve a low drift of 8ppm/°C with predictable temperature characteristic and an output voltage accuracy of ±0.1%. The LTC6652B voltage references can be powered from supply voltages up to 13.2V. The device provides low noise, excellent load regulation, exceptional line rejection, source and sink capability by making it as a superior choice for demanding precision applications. A shutdown mode allows power consumption to be reduced when the reference is not needed. The optional output capacitor can be left off when space constraints are critical.
容差 ±0.1 %
输出电压 5 V
输出电流 5 mA
供电电流 560 µA
针脚数 8
输入电压Max 13.2 V
输出电压Min 5 V
输出电流Max 5 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 5.3V ~ 13.2V
安装方式 Surface Mount
引脚数 8
封装 CLCC-8
封装 CLCC-8
工作温度 -40℃ ~ 125℃ TA
温度系数 ±4 ppm/℃
包装方式 Each
制造应用 Power Management, Industrial, 电源管理, Automotive, Medical, Automation & Process Control, 自动化与过程控制, 工业, 车用, 医用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
