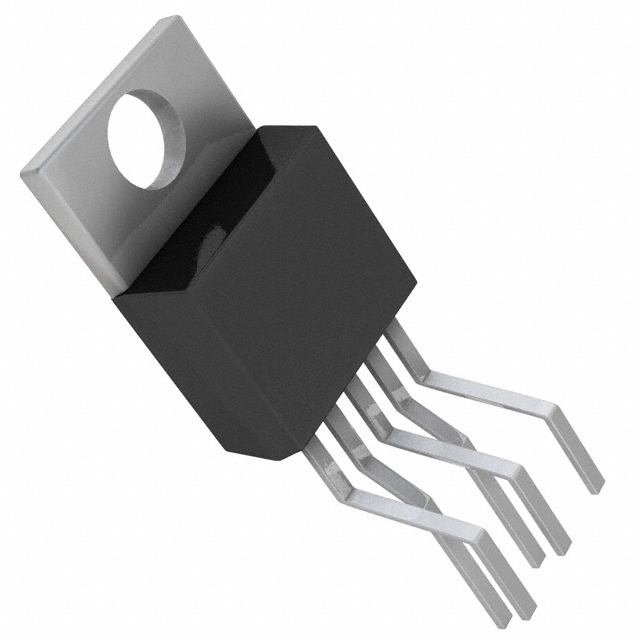

LT1076CT-5

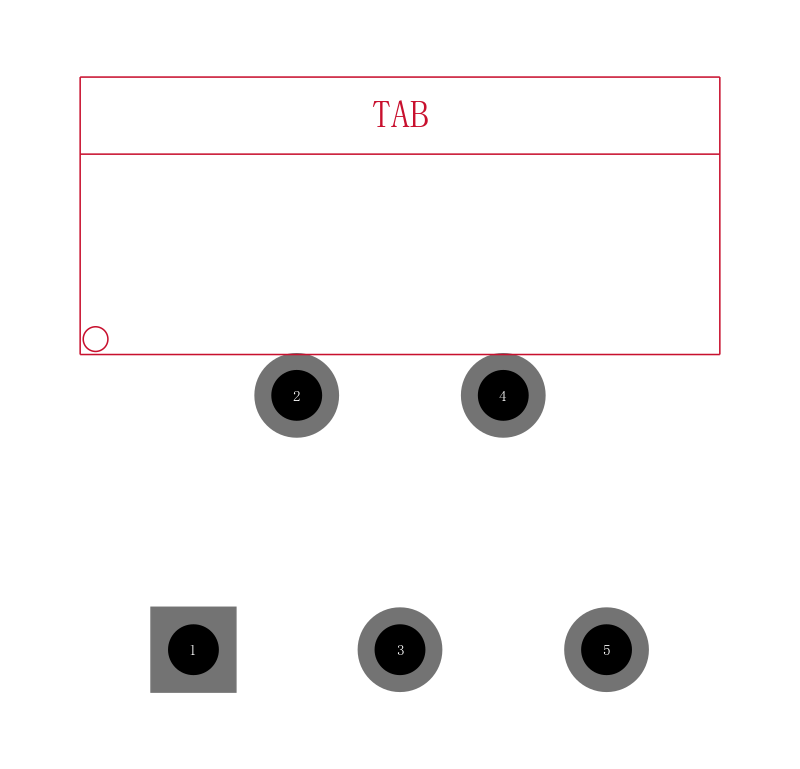

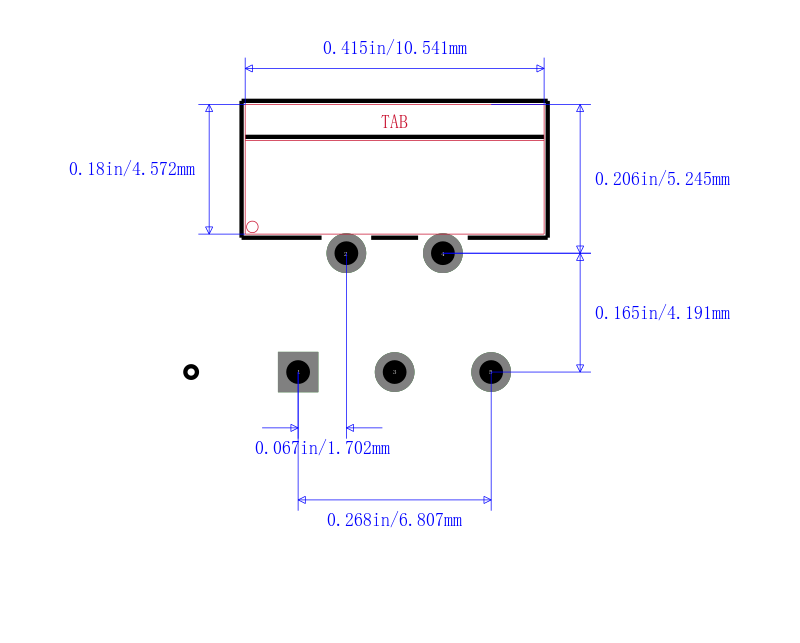

Conv DC-DC 7.3V to 45V Step Down Single-Out 5V 4A 5Pin5+Tab TO-220

ESCRIPTION

The LT1076-5 is a 2A fixed 5V output monolithic bipolar switching regulator which requires only a few external parts for normal operation. The power switch, all oscillator and control circuitry, all current limit components, and an output monitor are included on the chip. The topology is a classic positive “buck” configuration but several design innovations allow this device to be used as a positive-to negative converter, a negative boost converter, and as a flyback converter. The switch output is specified to swing 40V below ground, allowing the LT1076-5 to drive a tapped inductor in the buck mode with output currents up to 4A.

FEATURE

■ Fixed 5V Output

■ 2A On-Board Switch

■ 100kHz Switching Frequency

■ 2% Output Voltage Tolerance Over Temperature

■ Greatly Improved Dynamic Behavior

■ Available in Low Cost 5-Lead Package

■ Only 9.5mA Quiescent Current

■ Operates Up to 60V Input
