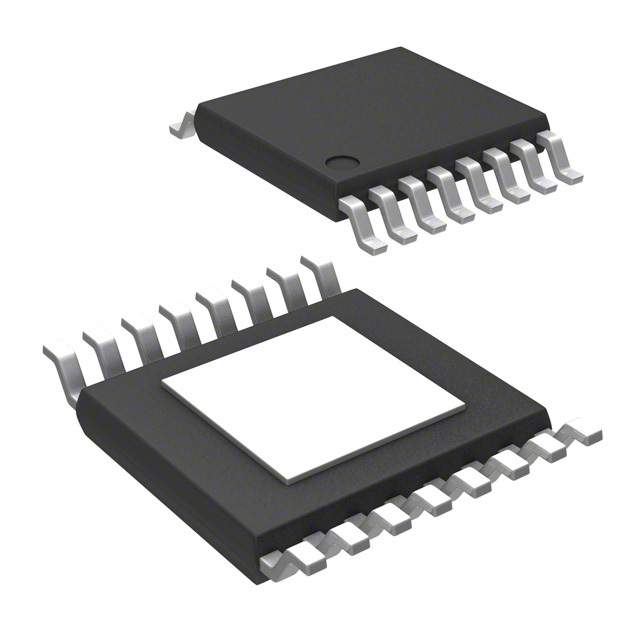

TEXAS INSTRUMENTS LM5575QMH/NOPB 直流-直流开关降压逐步递减稳压器, 可调, 6V-75V输入, 1.225V-70V输出, 1.5A输出, HTSSOP-16
The is a SIMPLE SWITCHER® 75V 1.5A step-down Switching Regulator which allows design engineers to design and optimize a robust power supply using a minimum set of components. Operating with an input voltage range of 6 to 75V, the LM5575Q delivers 1.5A of continuous output current with an integrated 330mR N-channel MOSFET. The regulator utilizes an Emulated Current Mode architecture which provides inherent line regulation, tight load transient response and ease-of-loop compensation without the usual limitation of low-duty cycles associated with current mode regulators. The operating frequency is adjustable from 50kHz to 500kHz to allow optimization of size and efficiency. To reduce EMI, a frequency synchronization pin allows multiple IC"s from the LM5575 device to self-synchronize or to synchronize to an external clock. The regulator ensures robustness with cycle-by-cycle current limit, short-circuit protection, thermal shutdown and remote shutdown.
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
输出接口数 1
输出电压 1.23V ~ 70V
输出电流 1.5 A
针脚数 16
静态电流 1.00 mA
调节输出数 1
开关频率 485 kHz
拓扑结构 Buck
输入电压Max 75 V
输入电压Min 6 V
输出电压Max 70 V
输出电压Min 1.225 V
输出电流Max 1.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 6 V
电源电压Min 6 V
输入电压 6 V
安装方式 Surface Mount
引脚数 16
封装 HTSSOP-16
封装 HTSSOP-16
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
