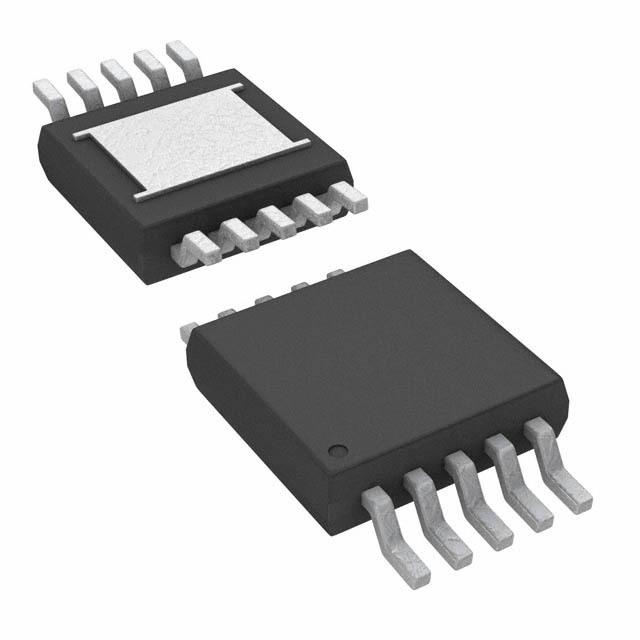

Buck, Buck-Boost Switching Regulator IC Positive Adjustable 0.6V 2 Output 800mA 10-TFSOP, 10-MSOP 0.118", 3mm Width Exposed Pad
Adjust the voltage level of your devices with this synchronous step down DC to DC converter from . This converter"s 2 outputs can produce a current up to 0.8 A. It only needs a voltage of at least 2.5 V while not exceeding 5.5 V to effectively power your circuit. With an adjustable output that has a voltage of 0.6 to 5 V, this is power management at its best. By operating at a load regulation of 0.5%Typ and line regulation of 0.5%/V you can provide a constant voltage at your output. This converter is 95 % efficient. It has a switching frequency of 2700 kHz. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This converter has a minimum operating temperature of -40 °C and a maximum of 85 °C.
输出接口数 2
输出电压 0.6V ~ 5V
输出电流 800 mA
开关频率 2.25 MHz
拓扑结构 Buck
输入电压Max 5.5 V
输入电压Min 2.5 V
输出电压Max 5 V
输出电压Min 0.6 V
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 2.5V ~ 5.5V
安装方式 Surface Mount
引脚数 10
封装 MSOP-10
高度 0.86 mm
封装 MSOP-10
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC3407EMSE-2#TRPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3407EMSE-2#PBF 凌力尔特 | 完全替代 | LTC3407EMSE-2#TRPBF和LTC3407EMSE-2#PBF的区别 |
