8V 至 40V、5A SIMPLE SWITCHER® 高效降压转换器 7-DDPAK/TO-263 -40 to 125
Adjust the voltage level of your devices with this step down DC to DC converter from Texas Instruments. This converter"s single output can produce a current up to 5 A. The best way to provide power to your application is by using this, which needs a voltage of at least 8 V and no higher than 40 V. With a fixed output that has a voltage of 12 V, this is power management at its best. This converter is 92typ % efficient. It has a switching frequency of 260Typ kHz. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This converter has an operating temperature range of -40 °C to 125 °C.
输出接口数 1
输出电压 12 V
输出电流 5 A
静态电流 4.20 mA
调节输出数 1
开关频率 260 kHz
拓扑结构 Buck
输入电压Max 40 V
输入电压Min 8 V
输出电压Min 12 V
输出电流Max 5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 40 V
安装方式 Surface Mount
引脚数 8

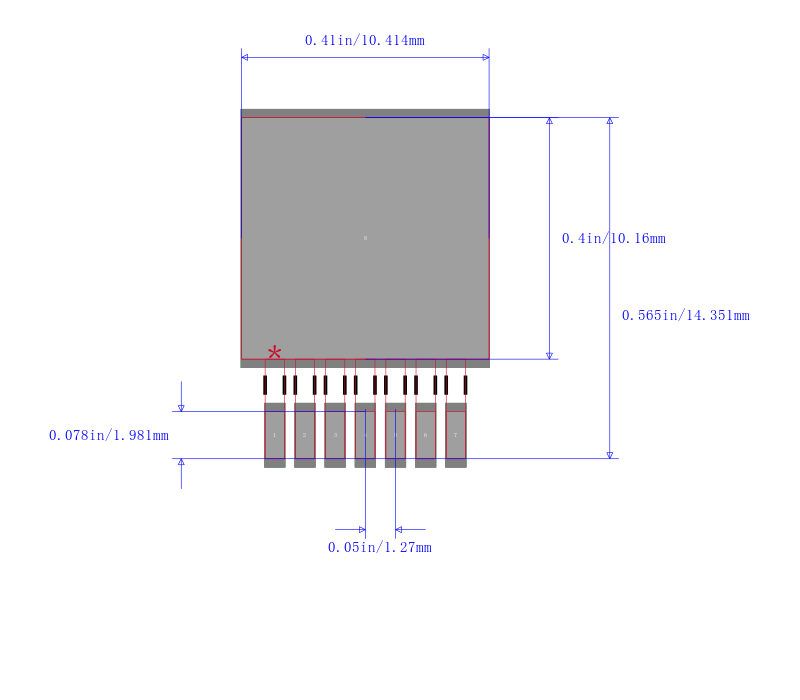

封装 TO-263-7
封装 TO-263-7
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2678SX-12/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM2678S-12/NOPB 德州仪器 | 类似代替 | LM2678SX-12/NOPB和LM2678S-12/NOPB的区别 |
