LINEAR TECHNOLOGY LTC3255HMSE#PBF 芯片, 降压电荷泵, 500KHZ, MSOP10
Have variability with different voltages by using this charge pump voltage doubler from . With an output that has a voltage of 2.4 to 12.5 V, this is power management at its best. Its output produces a current of 50Max mA. This device has a minimum operating supply voltage of 4 V and a maximum of 48 V. This inverting charge pump has a minimum operating temperature of -40 °C and a maximum of 150 °C.
输出接口数 1
输出电压 2.4V ~ 12.5V
输出电流 50 mA

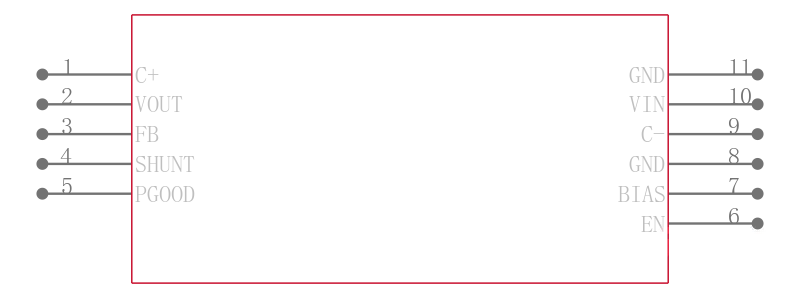

针脚数 10
开关频率 500 kHz
输入电压Max 48 V
输入电压Min 4 V
输出电压Max 12.5 V
输出电压Min 2.4 V
工作温度Max 150 ℃
工作温度Min -40 ℃
输入电压 4V ~ 48V
安装方式 Surface Mount
引脚数 10

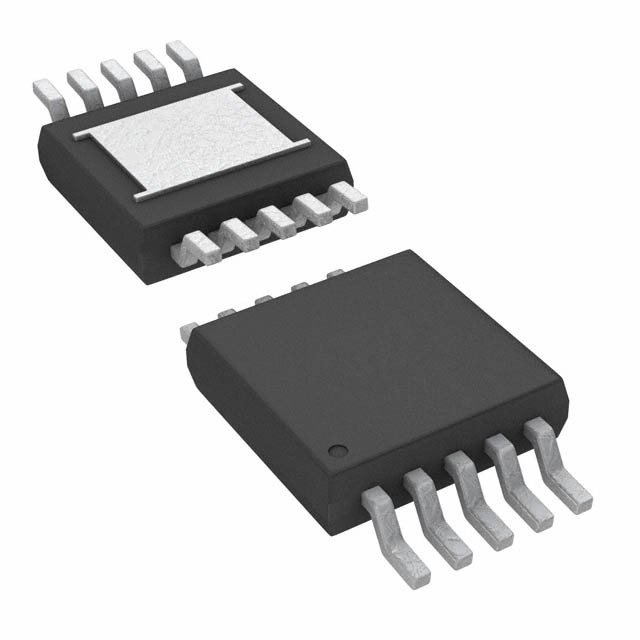

封装 MSOP-10
高度 0.86 mm
封装 MSOP-10
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC3255HMSE#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3255HMSE#TRPBF 凌力尔特 | 完全替代 | LTC3255HMSE#PBF和LTC3255HMSE#TRPBF的区别 |
LTC3255IMSE#PBF 凌力尔特 | 类似代替 | LTC3255HMSE#PBF和LTC3255IMSE#PBF的区别 |
LTC3255EMSE#PBF 凌力尔特 | 类似代替 | LTC3255HMSE#PBF和LTC3255EMSE#PBF的区别 |
