LM25575 / LM25575 -Q1 SIMPLE SWITCHER® 42V , 1.5A降压型开关稳压器 LM25575/LM25575-Q1 SIMPLE SWITCHER® 42V, 1.5A Step-Down Switching Regulator
Adjust the voltage level of your devices with this inverting and step down DC to DC converter from Texas Instruments. This converter"s single output can produce a current up to 1.5 A. It only needs a voltage of at least 6 V while not exceeding 42 V to effectively power your circuit. With an adjustable output that has a voltage of 1.225 to 40 V, this is power management at its best. This converter is 90 % efficient. It has a switching frequency of 50 to 1000 kHz. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
频率 1.00 MHz
输出接口数 1
输出电压 1.225V ~ 40V
输出电流 1.5 A
静态电流 1.00 mA
调节输出数 1
开关频率 50kHz ~ 1MHz
拓扑结构 Buck
输入电压Max 42 V
输入电压Min 6 V
输出电压Max 40 V
输出电压Min 1.225 V
输出电流Max 1.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 6V ~ 42V
安装方式 Surface Mount
引脚数 16

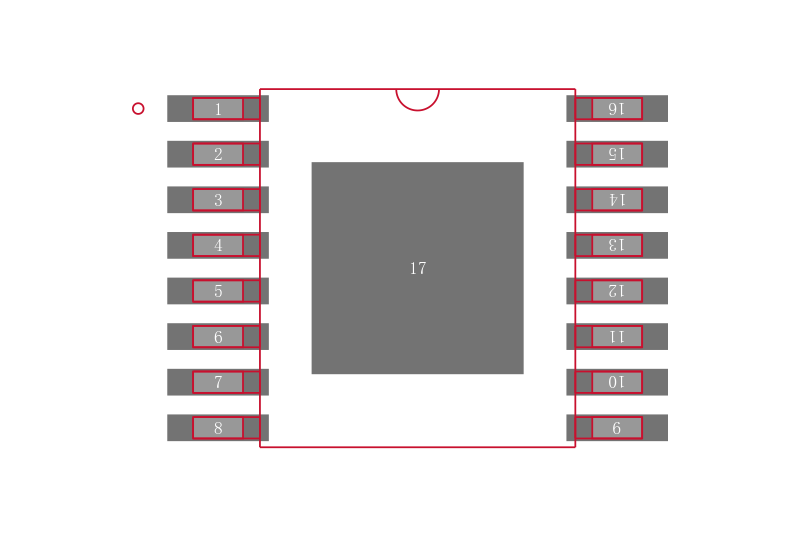

封装 TSSOP-16
高度 1.05 mm
封装 TSSOP-16
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM25575MH TI 德州仪器 | 当前型号 | 当前型号 |
LM25575MHX 德州仪器 | 完全替代 | LM25575MH和LM25575MHX的区别 |
LM25575MH/NOPB 德州仪器 | 类似代替 | LM25575MH和LM25575MH/NOPB的区别 |
LM25575MHX/NOPB 德州仪器 | 类似代替 | LM25575MH和LM25575MHX/NOPB的区别 |
