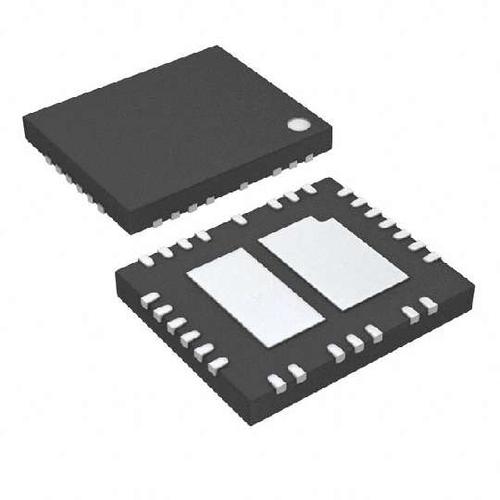

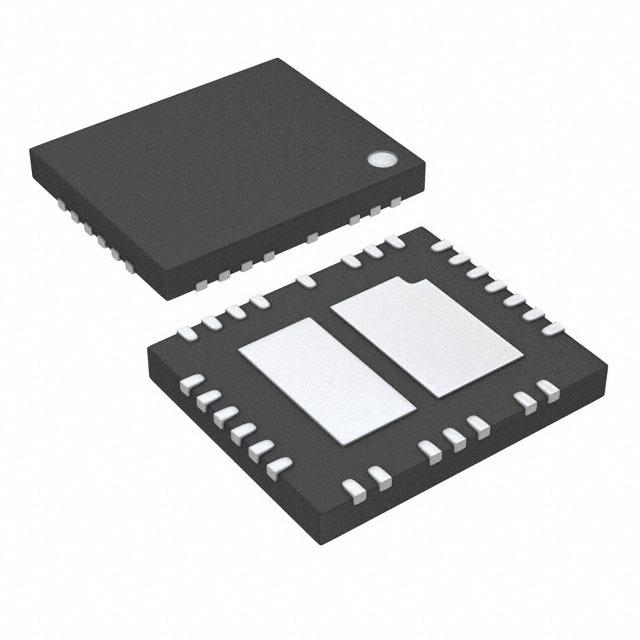

LINEAR TECHNOLOGY LT3957AEUHE#PBF 直流-直流开关升压, 反相, SEPIC稳压器, 可调, 3V-40V输入, 600mA输出, 1.2MHz, QFN-36
The is a current-mode DC-to-DC Converter which is capable of generating either positive or negative output voltage. It can be configured as either a boost, flyback, SEPIC or inverting converter. It features an internal low side N-channel power MOSFET rated for 40V at 5A and driven from an internal regulated 5.2V supply. The fixed frequency, current-mode architecture results in stable operation over a wide range of supply and output voltages. The operating frequency of LT3957A can be set with an external resistor over a 100kHz to 1MHz range and can be synchronized to an external clock using the SYNC pin. A minimum operating supply voltage of 3V and a low shutdown quiescent current of less than 1µA, make the LT3957A ideally suited for battery-powered systems. The LT3957A features soft-start and frequency foldback functions to limit inductor current during start-up. The LT3957A has improved load transient performance compared to the LT3957.
输出接口数 1
输出电压 1.6V ~ 40V
输出电流 600 mA
针脚数 36
开关频率 1.2 MHz
输入电压Max 40 V
输入电压Min 3 V
输出电压Max 40 V
输出电压Min 1.6 V
输出电流Max 5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 3V ~ 40V
安装方式 Surface Mount
引脚数 36
封装 QFN-36
高度 0.75 mm
封装 QFN-36
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 电源管理, Automotive, 工业, 通信与网络, 车用, Power Management, Communications & Networking, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT3957AEUHE#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT3957AEUHE#TRPBF 凌力尔特 | 功能相似 | LT3957AEUHE#PBF和LT3957AEUHE#TRPBF的区别 |
