LTC3703EG-5#PBF

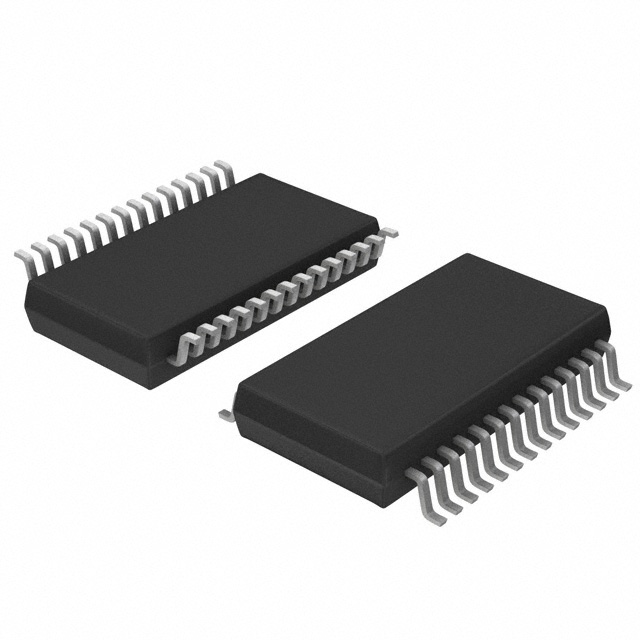

LTC3703EG-5#PBF图片1

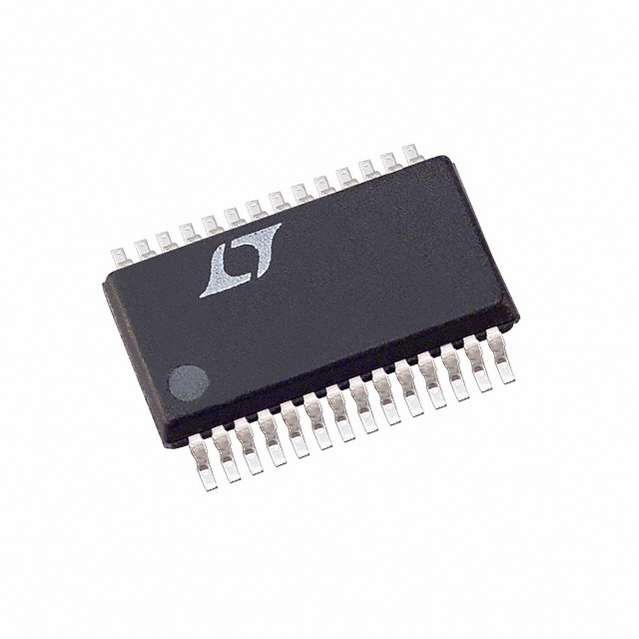

LTC3703EG-5#PBF图片2
LTC3703EG-5#PBF图片3
LTC3703EG-5#PBF图片4
LTC3703EG-5#PBF图片5
LTC3703EG-5#PBF图片6
LTC3703EG-5#PBF图片7
LTC3703EG-5#PBF概述

DC-DC Cntrlr Single-OUT Step Down 600kHz Automotive 28Pin SSOP Tube

Think of "s synchronous step down DC voltage controller the next time you need to change and manage different voltage levels within your project. Its output produces a current of 1 A. This DC voltage controller has single output. With an output that has a voltage of 0.8 to 55.8 V, this is power management at its best. This DC voltage controller has an input voltage of 9.3 to 60 V. Its switching regulator has a frequency of 100 to 600 kHz. This DC voltage controller has a minimum operating temperature of -40 °C and a maximum of 85 °C.

LTC3703EG-5#PBF中文资料参数规格
技术参数

输出接口数 1

输出电压 0.8V ~ 55.8V

输出电流 20 A

开关频率 100kHz ~ 600kHz

输入电压Max 60 V

输入电压Min 9.3 V

最大占空比 0.93

工作温度Max 85 ℃

工作温度Min -40 ℃

输入电压 4.1V ~ 15V

封装参数

安装方式 Surface Mount

引脚数 28

封装 SSOP-28

外形尺寸

封装 SSOP-28

物理参数

工作温度 -40℃ ~ 85℃ TA

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买LTC3703EG-5#PBF
型号: LTC3703EG-5#PBF
制造商: Linear Technology 凌力尔特
描述:DC-DC Cntrlr Single-OUT Step Down 600kHz Automotive 28Pin SSOP Tube
替代型号LTC3703EG-5#PBF
型号/品牌 代替类型 替代型号对比

LTC3703EG-5#PBF

Linear Technology 凌力尔特

当前型号

当前型号

LTC3703EG-5#TRPBF

凌力尔特

类似代替

LTC3703EG-5#PBF和LTC3703EG-5#TRPBF的区别
