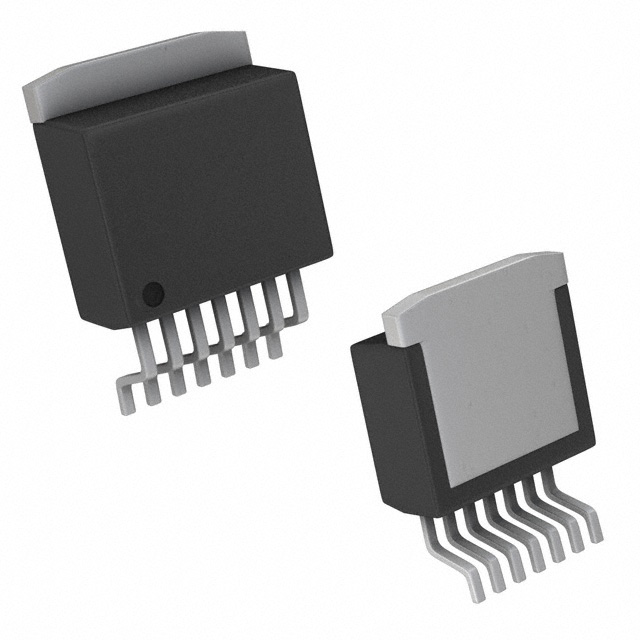

开关稳压器 5A SD VTG Reg
Adjust the voltage level of your devices with this step down DC to DC converter from Texas Instruments. This converter"s single output can produce a current up to 5 A. It only needs a voltage of at least 8 V while not exceeding 40 V to effectively power your circuit. With a fixed output that has a voltage of 5 V, this is power management at its best. This converter is 84typ % efficient. It has a switching frequency of 260Typ kHz. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
输出接口数 1
输出电压 5 V
输出电流 5 A
静态电流 4.20 mA
调节输出数 1
开关频率 260 kHz
拓扑结构 Buck
开关电流 6.3 A
输入电压Max 40 V
输入电压Min 8 V
输出电压Min 5 V
输出电流Max 5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 8 V
电源电压Min 8 V
输入电压 8 V
安装方式 Surface Mount

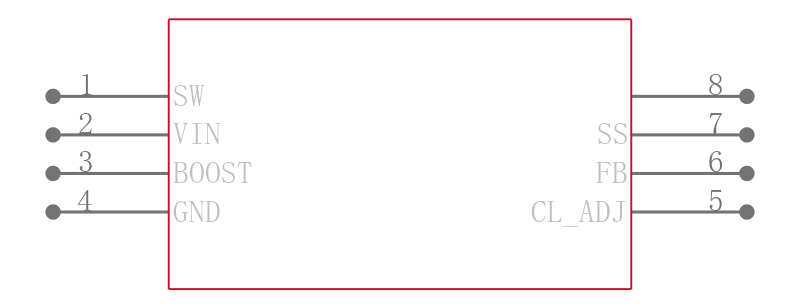

引脚数 8

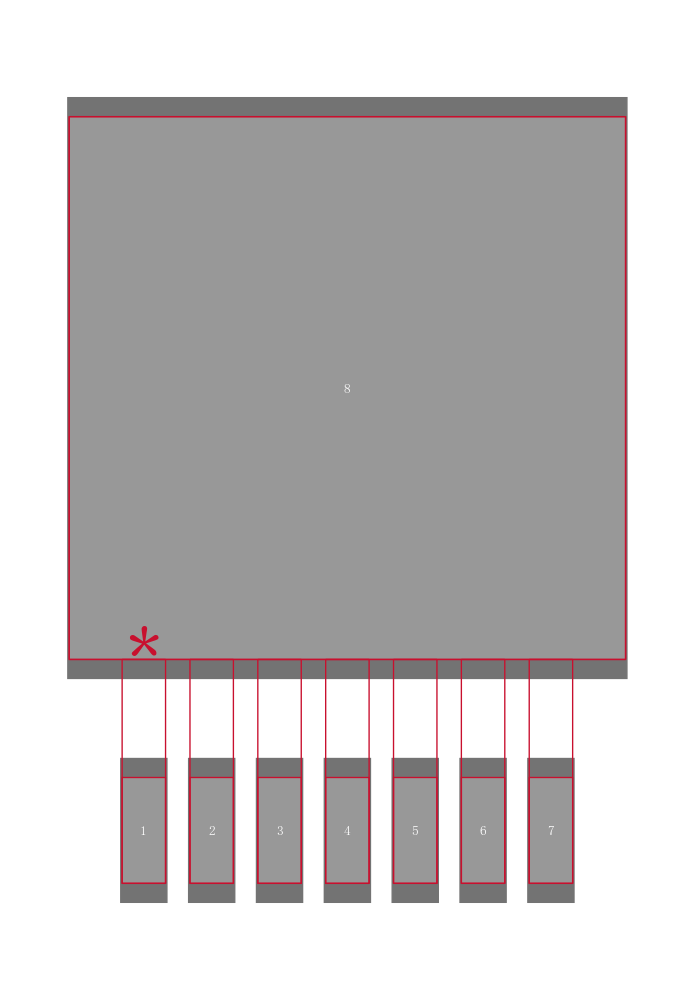

封装 TO-263-7
封装 TO-263-7
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LM2679SX-5.0/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM2679S-5.0/NOPB 德州仪器 | 类似代替 | LM2679SX-5.0/NOPB和LM2679S-5.0/NOPB的区别 |
LM2679SX-5.0 德州仪器 | 类似代替 | LM2679SX-5.0/NOPB和LM2679SX-5.0的区别 |
LM2679S-5.0 德州仪器 | 功能相似 | LM2679SX-5.0/NOPB和LM2679S-5.0的区别 |
