LT1912 - 36V, 2A, 500kHz Step-Down Switching Regulator
Adjust the voltage level of your devices with this step down DC to DC converter from . This converter"s single output can produce a current up to 2 A. It only needs a voltage of at least 3.6 V while not exceeding 36 V to effectively power your circuit. With an adjustable output that has a voltage of 0.79 to 20 V, this is power management at its best. Its switching regulator has a frequency of 200 to 500 kHz. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This converter has an operating temperature range of -40 °C to 125 °C.
输出接口数 1
输出电压 0.79V ~ 20V
输出电流 2 A
开关频率 200kHz ~ 500kHz
输入电压Max 36 V
输入电压Min 3.6 V
输出电压Max 20 V
输出电压Min 0.79 V
输出电流Max 2 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 3.6V ~ 36V
安装方式 Surface Mount
引脚数 10

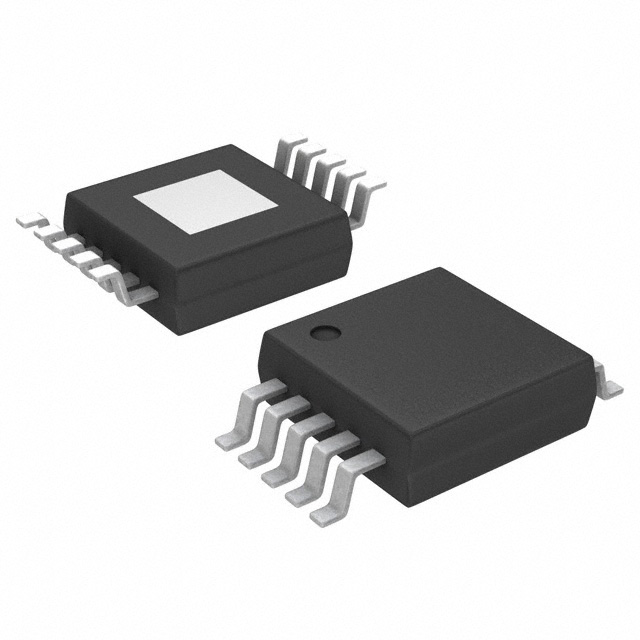

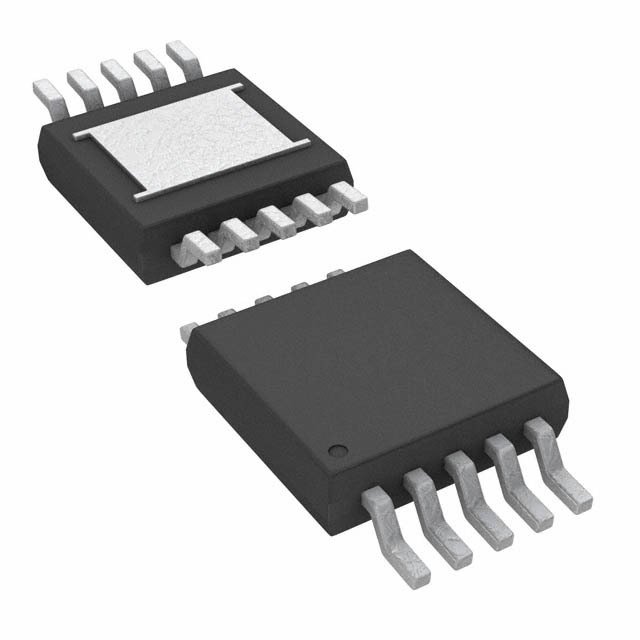

封装 TFSOP-10
高度 0.86 mm
封装 TFSOP-10
工作温度 0℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
