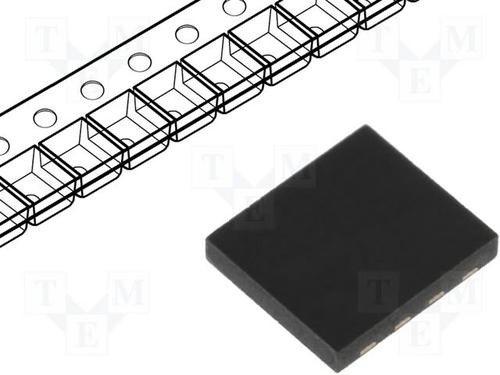

DC-DC converter; step down; Uin:4.5÷45V; Uout:0.8÷45V; 225mA
Adjust the voltage level of your devices with this synchronous step down DC to DC converter from . This converter"s single output can produce a current up to 0.1 A. Using the part will provide the power your application needs by requiring a voltage only of 4.5 V and not exceeding a voltage of 45 V. With an adjustable output that has a voltage of 0.8 to 45 V, this is power management at its best. Users like the line regulation of 0.001%/VTyp. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.
输出接口数 1
输出电压 0.8V ~ 45V
输出电流 100 mA
输入电压Max 45 V
输入电压Min 4.5 V
输出电压Max 45 V
输出电压Min 0.8 V
输出电流Max 0.1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 4.5.45 V
安装方式 Surface Mount
引脚数 8

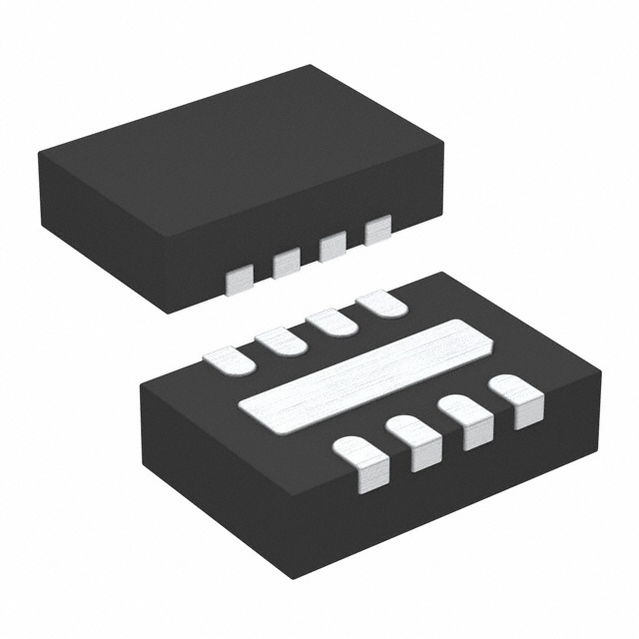

封装 WFDFN-8
高度 0.75 mm
封装 WFDFN-8
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC3631EDD#TRPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3631EDD#PBF 凌力尔特 | 类似代替 | LTC3631EDD#TRPBF和LTC3631EDD#PBF的区别 |
