LINEAR TECHNOLOGY LTC4417CUF#PBF 芯片, 定序器, 三路供电, 36V, 24QFN
The is a Prioritized PowerPath™ Controller that connects one of three valid power supplies to a common output based on priority. Priority is defined by pin assignment, with V1 assigned the highest priority and V3 the lowest priority. A power supply is defined as valid when its voltage has been within its overvoltage OV and undervoltage UV window continuously for at least 256ms. If the highest priority valid input falls out of the OV/UV window, the channel is immediately disconnected and the next highest priority valid input is connected to the common output. Two or more LTC4417s can be cascaded to provide switchover between more than three inputs. The gate driver includes a 6V clamp to protect external MOSFETs. A controlled output ramp feature minimizes start-up inrush current. Open drain VALID outputs indicate the input supplies have been within their OV/UV window for 256ms.
电源电压DC 2.50V min
供电电流 28 µA
针脚数 24
阈值电压 1.00 V
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 2.5V ~ 36V
电源电压Max 36 V
电源电压Min 2.5 V
安装方式 Surface Mount
引脚数 24

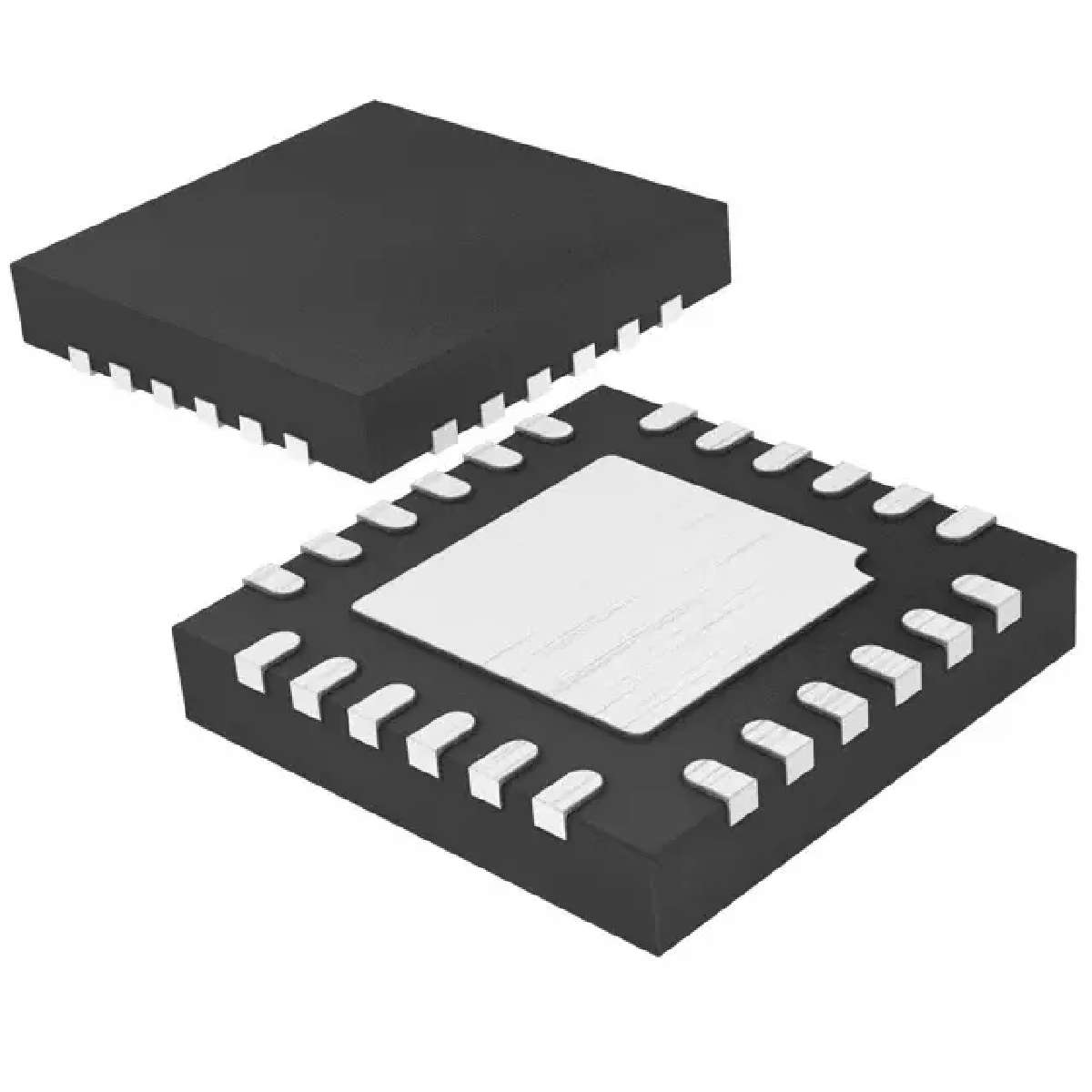

封装 QFN-24
封装 QFN-24
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Each
制造应用 工业, 备用电池,手持/移动设备, Portable Devices, 电源管理, 计算机和计算机周边, Power Management, 便携式器材, Industrial, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC4417CUF#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC4417CUF#TRPBF 凌力尔特 | 完全替代 | LTC4417CUF#PBF和LTC4417CUF#TRPBF的区别 |
LTC4417IUF#PBF 凌力尔特 | 类似代替 | LTC4417CUF#PBF和LTC4417IUF#PBF的区别 |
LTC4417HUF#PBF 凌力尔特 | 功能相似 | LTC4417CUF#PBF和LTC4417HUF#PBF的区别 |
