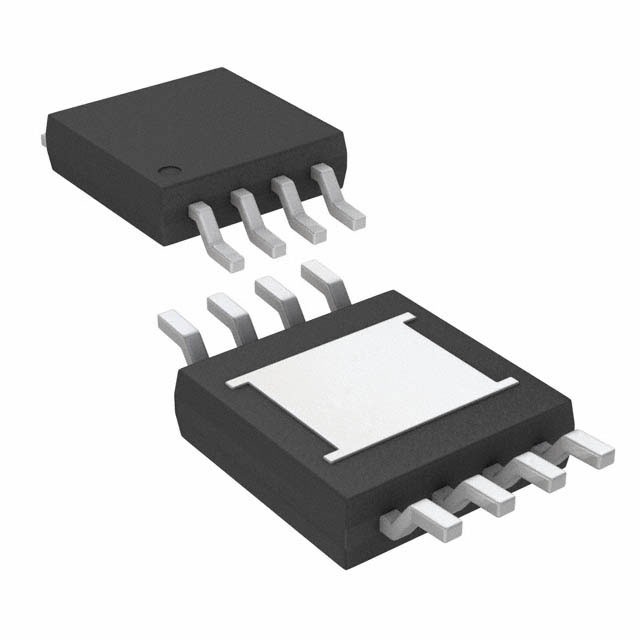

LINEAR TECHNOLOGY LTC3621HMS8E#PBF 直流-直流开关降压逐步递减稳压器, 可调, 2.7V-17V输入, 600mV-17V输出, 1A输出, MSOP-8
The is a high efficiency synchronous step down buck regulator with adjustable output in 8 pin MSOP package. This monolithic regulator uses constant frequency peak current mode architecture. It has ultralow quiescent current and high efficiencies over wide output voltage range. The user selectable mode input is provided to allow the user to trade off ripple noise for light load efficiency. The burst mode operation provides highest efficiency at light loads and pulse skipping mode provides lowest voltage ripple. The MODE pin allows user to sync the switching frequency to an external clock. The current mode operation of LTC3621 provides excellent line and load transient response.
输出接口数 1
输出电压 0.6V ~ 17V
输出电流 1 A
针脚数 8
开关频率 1 MHz
输入电压Max 17 V
输入电压Min 2.7 V
输出电压Max 17 V
输出电压Min 600 mV
输出电流Max 1 A
工作温度Max 150 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 8
封装 MSOP-8
封装 MSOP-8
工作温度 -40℃ ~ 150℃ TJ
产品生命周期 Unknown
包装方式 Each
制造应用 电源管理, Portable Devices, Automotive, 工业, 便携式器材, 车用, Power Management, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC3621HMS8E#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3621HMS8E#TRPBF 凌力尔特 | 功能相似 | LTC3621HMS8E#PBF和LTC3621HMS8E#TRPBF的区别 |
