DC-DC converter; step down; Uin:2.25÷5.5V; Uout:0.6÷5.5V; 1.3A
Adjust the voltage level of your devices with this synchronous step down DC to DC converter from . This converter"s 3 outputs can produce a current up to 0.8 A. The best way to provide power to your application is by using this, which needs a voltage of at least 2.25 V and no higher than 5.5 V. With an adjustable output that has a voltage of 0.6 to 5.5 V, this is power management at its best. At a load regulation of 0.5%Typ and line regulation of 0.15%/V your circuit is capable of maintaining a constant voltage level at your output. This converter is 95 % efficient. It has a switching frequency of 2700 kHz. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This converter has an operating temperature range of -40 °C to 125 °C.
输出接口数 3
输出电压 0.6.5.5 V
输出电流 800 mA
开关频率 2.25 MHz
输入电压Max 5.5 V
输入电压Min 2.25 V
输出电压Max 5.5 V
输出电压Min 0.6 V
输出电流Max 0.8 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 2.25.5.5 V
安装方式 Surface Mount
引脚数 16

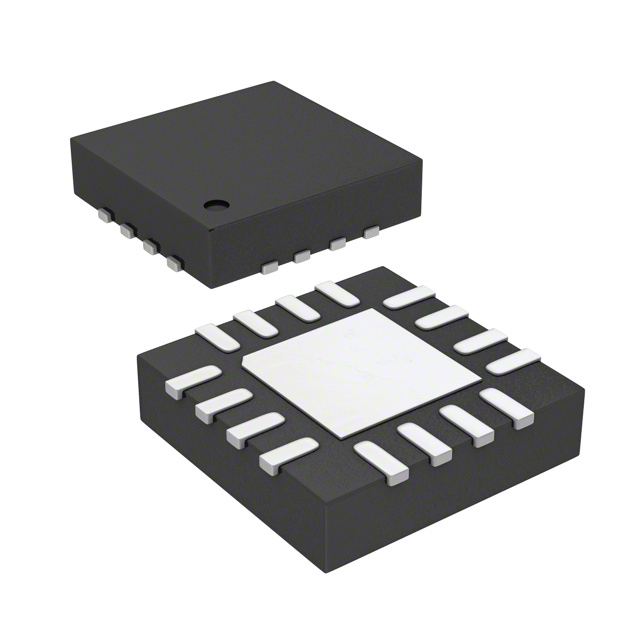

封装 QFN-16
封装 QFN-16
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Unknown

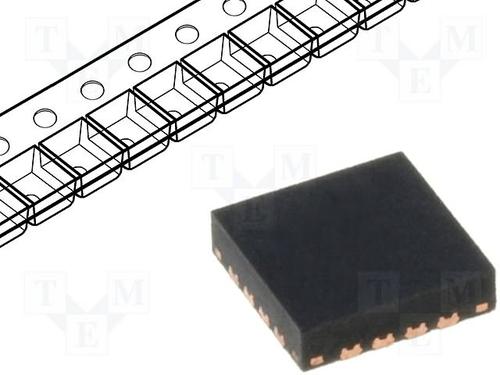

包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC3545EUD#TRPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC3545EUD#PBF 凌力尔特 | 类似代替 | LTC3545EUD#TRPBF和LTC3545EUD#PBF的区别 |
LTC3545IUD#PBF 凌力尔特 | 功能相似 | LTC3545EUD#TRPBF和LTC3545IUD#PBF的区别 |
