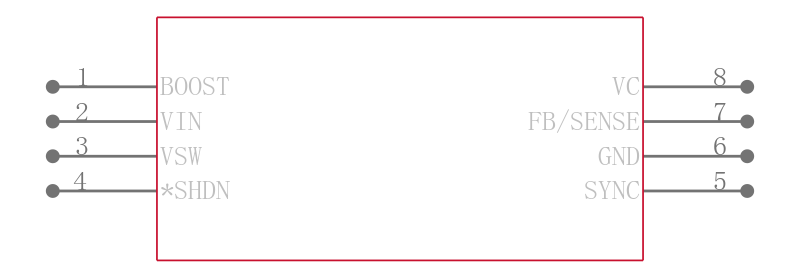

LT1375HVCS8

Conv DC-DC 5V to 30V Synchronous Step Down Single-Out 2.42V to 25.8V 1.5A 8Pin SOIC N

DESCRIPTION

The LT® 1375/LT1376 are 500kHz monolithic buck mode switching regulators. A 1.5A switch is included on the die along with all the necessary oscillator, control and logic  circuitry. High switching frequency allows a considerable reduction in the size of external components.

FEATURES

■ Constant 500kHz Switching Frequency

■ Easily Synchronizable

■ Uses All Surface Mount Components

■ Inductor Size Reduced to 5µH

■ Saturating Switch Design: 0.4Ω

■ Effective Supply Current: 2.5mA

■ Shutdown Current: 20µA

■ Cycle-by-Cycle Current Limiting

APPLICATIONS

■ Portable Computers

■ Battery-Powered Systems

■ Battery Charger

■ Distributed Power
