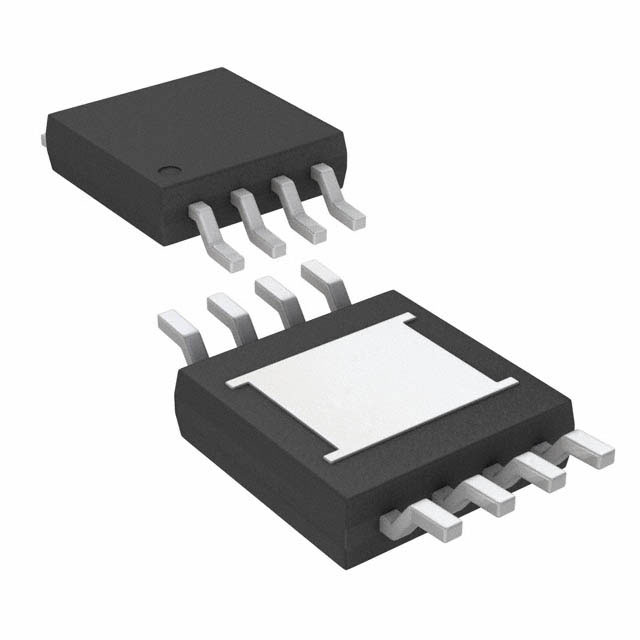

LT3061MPMS8E#PBF

LINEAR TECHNOLOGY  LT3061MPMS8E#PBF  电压稳压器, LDO, 可调, 1.6V至45V输入, 250mV压差, 600mV至19V/0.1A输出, MSOP-8

The is a micro-power low noise low-dropout LDO Linear Regulator that operates over a 1.6 to 45V supply range. The device supplies 100mA of output current with a typical dropout voltage of 250mV. A single external capacitor provides programmable low noise reference performance and output soft-start functionality. Its quiescent current is merely 45µA and provides fast transient response with a minimum 3.3µF output capacitor. In shutdown, quiescent current is less than 3µA and the reference soft start capacitor is reset. The LT3061 features an NMOS pull-down that discharges the output when SHDN/ or IN is driven low. Internal protection circuitry includes reverse-battery protection, reverse-current protection and current limit with fold-back and thermal shutdown. It is available as an adjustable device with an output voltage range from the 600mV reference up to 19V.

.

Single capacitor soft-starts reference and lowers output noise

.

Output tolerance - ±2% Over load, line and temperature
