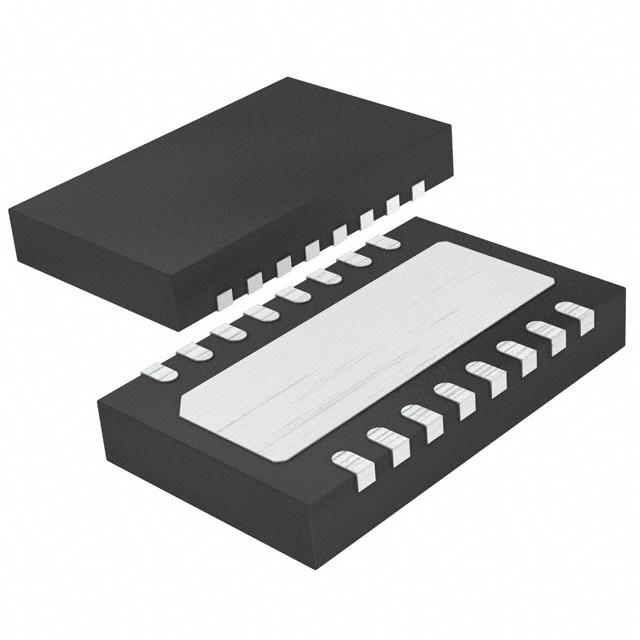

LINEAR TECHNOLOGY LTC2910CDHC#PBF 监视器, 高电平有效, 低电平有效复位, 8监视器, 2.3V-7V输入, DFN-16
The is an octal positive/negative Voltage Monitor with open drain RST and RST\ outputs. The input voltage monitor intended for monitoring multiple voltages in a variety of applications. Each input has a nominal 0.5V threshold, featuring 1.5% tight threshold accuracy over the entire operating temperature range. Glitch filtering ensures reliable reset operation without false or noisy triggering. Polarity selection and a buffered reference allow monitoring up to two separate negative voltages. A three state input pin allows setting the polarity of two inputs without requiring any external components. It provides a precise, versatile, space-conscious, micropower solution for voltage monitoring.
电源电压DC 2.30V min
供电电流 50.0 µA
针脚数 16
阈值电压 Adjustable
复位电压Min 0.492 V
复位电压Max 0.508 V
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压Max 7 V
电源电压Min 2.3 V
安装方式 Surface Mount
引脚数 16
封装 DFN-16
封装 DFN-16
工作温度 0℃ ~ 70℃
产品生命周期 Unknown
包装方式 Tube
制造应用 Power Management, 电机驱动与控制, 电源管理, Motor Drive & Control
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC2910CDHC#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC2910CDHC#TRPBF 凌力尔特 | 完全替代 | LTC2910CDHC#PBF和LTC2910CDHC#TRPBF的区别 |
LTC2910IDHC#PBF 凌力尔特 | 类似代替 | LTC2910CDHC#PBF和LTC2910IDHC#PBF的区别 |
