LM5122QMHE/NOPB

TEXAS INSTRUMENTS  LM5122QMHE/NOPB  直流-直流开关升压逐步递增稳压器, 可调, 4.5V-65V输入, 3V-100V输出, 15A输出, HTSSOP-20

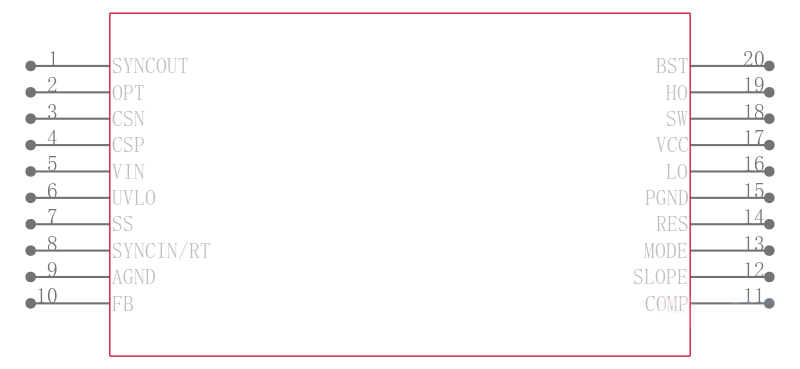

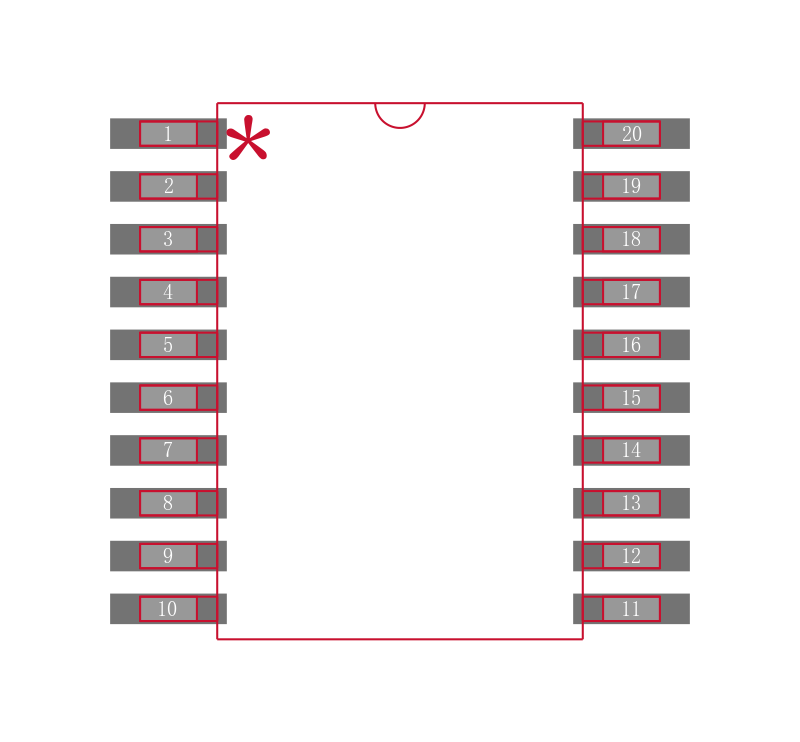

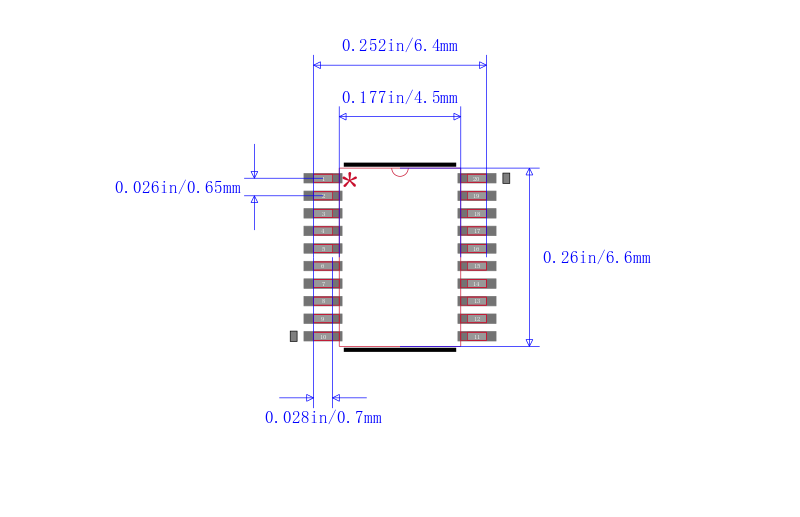

The is a multiphase capable synchronous Boost Controller intended for high-efficiency synchronous boost regulator applications. The control method is based upon peak current-mode control. Current-mode control provides inherent line feed-forward, cycle-by-cycle current limiting and ease of loop compensation. The switching frequency is programmable up to 1MHz. Higher efficiency is achieved by two robust N-channel MOSFET gate drivers with adaptive dead-time control. A user-selectable diode emulation mode also enables discontinuous mode operation for improved efficiency at light load conditions. An internal charge pump allows 100% duty cycle for high-side synchronous switch bypass operation. A 180° phase shifted clock output enables easy multi-phase interleaved configuration. Additional features include thermal shutdown, frequency synchronization, hiccup mode current limit and adjustable line undervoltage lockout.

.

Bypass VOUT=VIN operation

.

Peak current-mode control

.

Robust 3A integrated gate drivers

.

Adaptive dead-time control

.

Optional diode emulation mode

.

Programmable cycle-by-cycle current limit

.

Hiccup mode overload protection

.

Programmable line UVLO

.

Programmable soft-start function

.

Thermal shutdown protection

.

9µA Low shutdown quiescent current

.

Programmable slope compensation

.

Programmable skip cycle mode reduces standby power

.

Allows external VCC supply

.

Inductor DCR current sensing capability

.

Free-run and synchronizable switching to 1MHz

.

1.2V Voltage reference with ±1% accuracy

.

Green product and no Sb/Br
