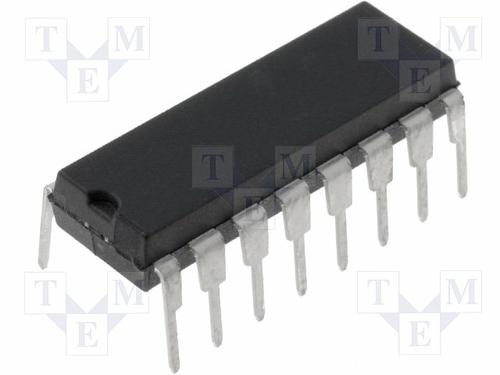

Processor Supervisor 4.65V 1500uA 16Pin Plastic Dip N
For an extra layer of protection, use this microprocessor supervisory circuit from to have another processor take control in case of an emergency. This device has a maximum power dissipation of 500 mW. Its maximum power dissipation is 500 mW. It has a typical reset threshold voltage of 4.65 V, with a minimum of 4.5 V and a maximum of 4.75 V. This device has a minimum operating supply voltage of 4.75 V and a maximum of 5.5 V. This part has an operating temperature range of 0 °C to 70 °C.
频率 250 kHz
电源电压DC 4.75V min
额定功率 500 mW
输出电流 200 mA
供电电流 600 µA
耗散功率 500 mW
阈值电压 4.65 V
复位电压Min 4.5 V
复位电压Max 4.75 V
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 500 mW
电源电压 4.75.5.5 VDC
电源电压Max 5.5 V
电源电压Min 4.75 V
安装方式 Through Hole
引脚数 16
封装 DIP-16
封装 DIP-16
工作温度 0℃ ~ 70℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC691CN#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC691IN#PBF 凌力尔特 | 类似代替 | LTC691CN#PBF和LTC691IN#PBF的区别 |
LTC691CN 凌力尔特 | 功能相似 | LTC691CN#PBF和LTC691CN的区别 |
