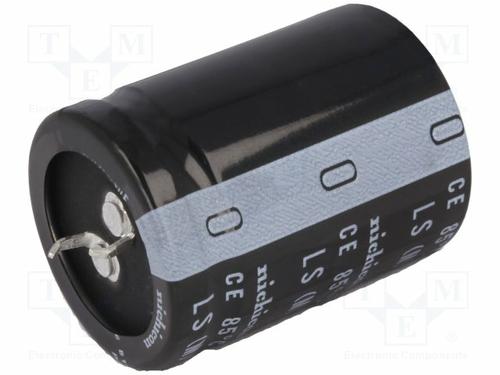

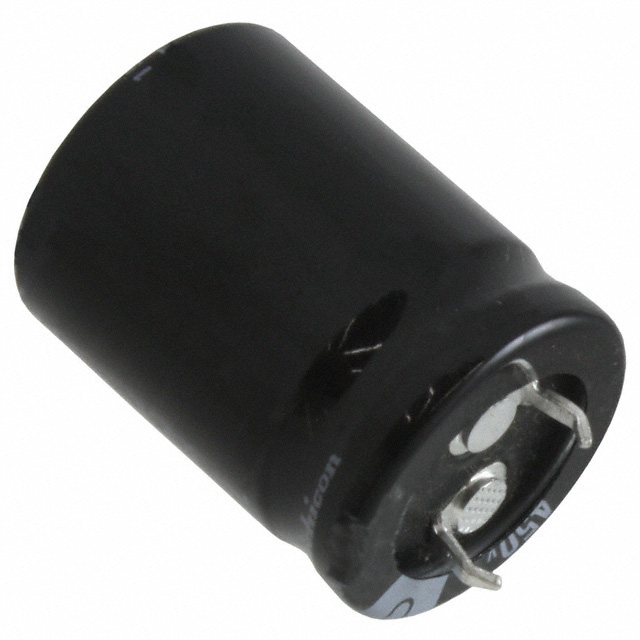

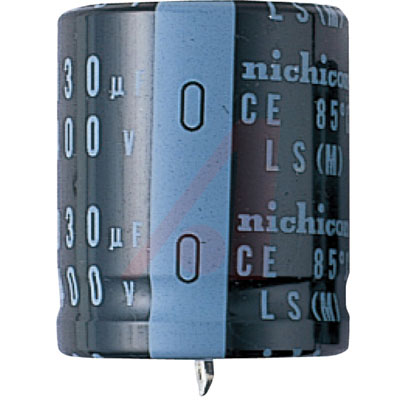

LLS2A102MELZ

NICHICON  LLS2A102MELZ  铝电解电容, 1000uF, 100V, 摁入式

1000 µF 100 V 铝电解器 径向，Can - 卡入式 - 85°C 时为 3000 小时

得捷:
CAP ALUM 1000UF 20% 100V SNAP

立创商城:
1000uF ±20% 100V

e络盟:
铝电解电容, 1000uF, 100V, 摁入式

艾睿:

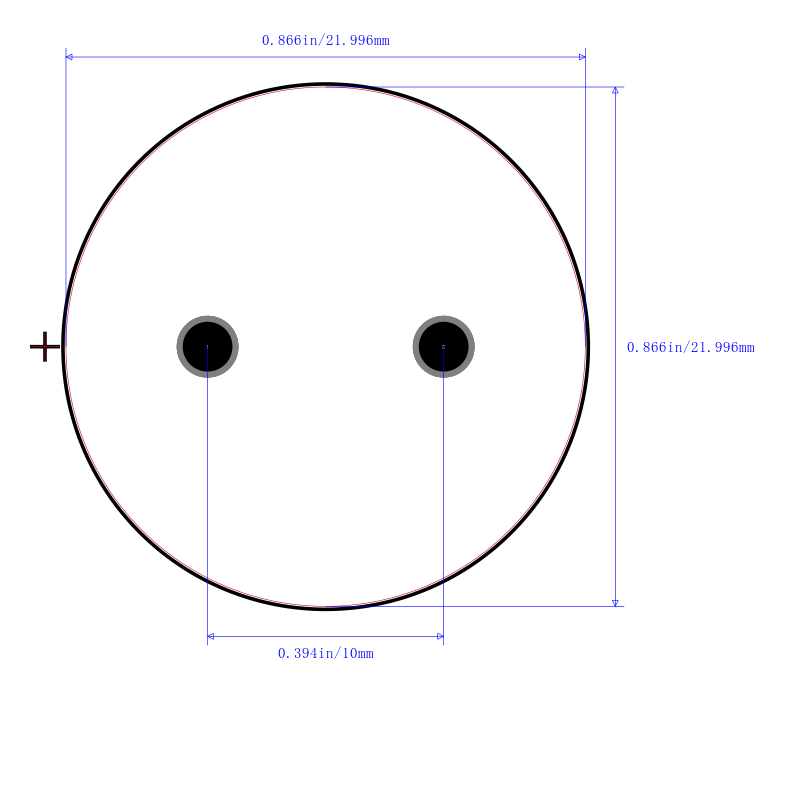

Who knew generating high heat for a given current level would be this easy? Pick up this unique electrolytic LLS2A102MELZ aluminum capacitor from Nichicon for its relatively high ESR! It can withstand a voltage of 100 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. This product is 30 mm tall with a diameter of 22 mm. Its leakage current is 940@5Min μA. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. It has a tolerance of 20%. The LLS2A102MELZ aluminum electrolytic capacitor has a snap-in termination style. Its capacitance value is 1000uF.

Allied Electronics:
Capacitor; Al Electrolytic; Cap 1000 uF; Tol 20%; Vol-Rtg 100 VDC; Snap-In; 22x30mm

安富利:
Cap Aluminum 1000uF 100V 20% 22 X 30mm 10mm 2020mA 3000 hr 85°C Bulk

Chip1Stop:
Cap Aluminum Lytic 1000uF 100V 20% 22 X 30mm Snap-In 10mm 2020mA 3000h 85ÂÂ℃ Bulk

TME:
Capacitor: electrolytic; THT; 1000uF; 100VDC; Ø22x30mm; ±20%; 3000h

Verical:
Cap Aluminum Lytic 1000uF 100V 20% 22 X 30mm Snap-In 10mm 2020mA 3000h 85C Bulk

Newark:
# NICHICON  LLS2A102MELZ  Electrolytic Capacitor, Snap-in, 1000 µF, 100 V, LS Series, ± 20%, Quick Connect, Snap-In, 22 mm

Win Source:
CAP ALUM 1000UF 20% 100V SNAP / 1000 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C
